2025 Evil · MD

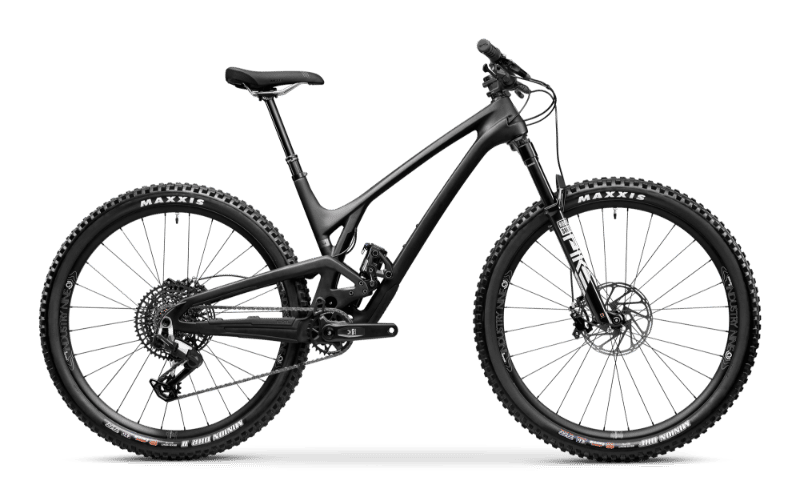

2025 Evil Following LS geometry
Full frame geometry for the 2025 Evil Following LS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 440 | 76 | 66.9 | 90 | 652 | 36 | 727 | 430 | 1156 | 51 | 100 |
| L | 604 | 480 | 76 | 66.9 | 110 | 677 | 36 | 775 | 430 | 1203 | 51 | 100 |
| M | 604 | 460 | 76 | 66.9 | 110 | 666 | 36 | 755 | 430 | 1183 | 51 | 100 |
| XL | 614 | 500 | 76 | 66.9 | 120 | 690 | 36 | 799 | 430 | 1227 | 51 | 100 |
All measurements in millimetres unless marked (°) for angles.
