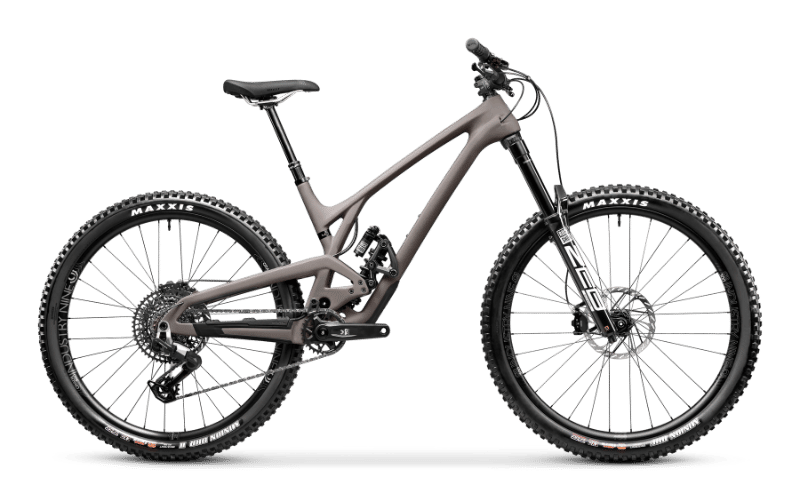

2025 Evil Wreckoning LS geometry
Full frame geometry for the 2025 Evil Wreckoning LS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 626 | 438 | 76.3 | 64.6 | 104 | 18 | 775 | 430 | 1205 | 44 | 128 |
| M | 635 | 455 | 76.3 | 64.6 | 114 | 18 | 797 | 430 | 1226 | 44 | 128 |
| L | 647 | 475 | 76.3 | 64.6 | 127 | 18 | 822 | 430 | 1251 | 44 | 128 |
| XL | 658 | 495 | 76.3 | 64.6 | 139 | 18 | 847 | 430 | 1276 | 44 | 128 |
All measurements in millimetres unless marked (°) for angles.
