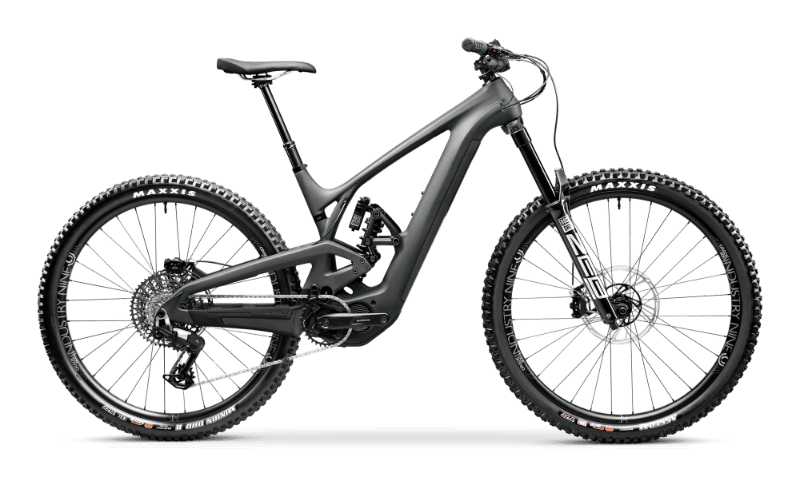

2026 Evil Epocalypse geometry
Full frame geometry for the 2026 Evil Epocalypse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 626 | 438 | 75.6 | 64.5 | 104 | 599 | 390 | 727 | 18 | 775 | 442 | 1217 | 44 | 129 |
| M | 635 | 455 | 75.6 | 64.5 | 114 | 616 | 425 | 727 | 18 | 796 | 442 | 1238 | 44 | 129 |
| L | 647 | 475 | 75.6 | 64.5 | 127 | 637 | 460 | 727 | 18 | 822 | 442 | 1263 | 44 | 129 |
| XL | 658 | 495 | 75.6 | 64.5 | 139 | 659 | 495 | 735 | 18 | 847 | 442 | 1288 | 44 | 129 |
All measurements in millimetres unless marked (°) for angles.
