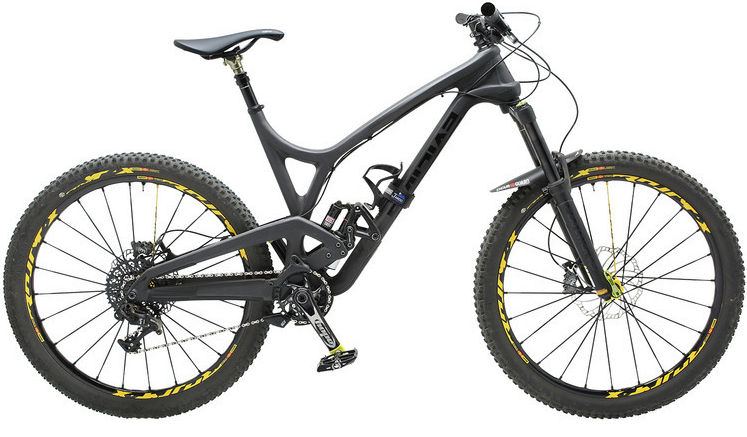

2016 Evil The Insurgent geometry
Full frame geometry for the 2016 Evil The Insurgent, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-150 | 586 | 421 | 74.8 | 66.1 | 100 | 598 | 651 | 0 | 721 | 430 | 1151 | 42 |
| S-160 | 586 | 421 | 74.3 | 65.6 | 100 | 598 | 651 | 0 | 721 | 430 | 1151 | 42 |
| M-150 | 599 | 438 | 74.8 | 66.1 | 114 | 619 | 680 | 0 | 744 | 430 | 1174 | 42 |
| M-160 | 599 | 438 | 74.3 | 65.6 | 114 | 619 | 680 | 0 | 744 | 430 | 1174 | 42 |
| L-150 | 611 | 455 | 74.8 | 66.1 | 127 | 640 | 700 | 0 | 766 | 430 | 1196 | 42 |
| L-160 | 611 | 455 | 74.3 | 65.6 | 127 | 640 | 700 | 0 | 766 | 430 | 1196 | 42 |
| XL-150 | 623 | 472 | 74.8 | 66.1 | 141 | 661 | 715 | 0 | 789 | 430 | 1219 | 42 |
| XL-160 | 623 | 472 | 74.3 | 65.6 | 141 | 661 | 715 | 0 | 789 | 430 | 1219 | 42 |
All measurements in millimetres unless marked (°) for angles.
