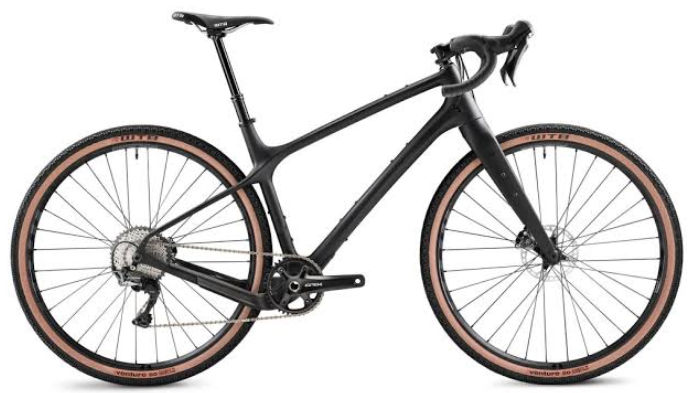

2019 Evil Chamois Hagar geometry
Full frame geometry for the 2019 Evil Chamois Hagar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 400 | 71 | 66.7 | 140 | 586 | 450 | 662 | 80 | 680 | 430 | 109 | 57 | 93 |
| M | 594 | 420 | 72 | 66.7 | 160 | 605 | 470 | 671 | 80 | 708 | 430 | 112 | 57 | 93 |
| L | 612 | 440 | 72 | 66.7 | 180 | 624 | 490 | 682 | 80 | 736 | 430 | 115 | 57 | 93 |
| XL | 631 | 460 | 73 | 66.7 | 200 | 643 | 510 | 696 | 80 | 763 | 430 | 118 | 57 | 93 |
All measurements in millimetres unless marked (°) for angles.
