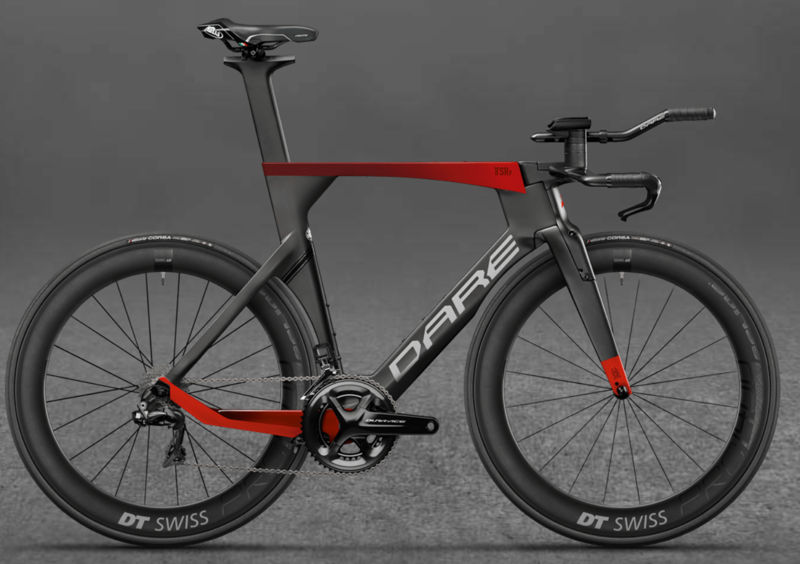

2019 Dare TSRf geometry
Full frame geometry for the 2019 Dare TSRf, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 480 | 368 | 73 | 71.5 | 66 | 479 | 485 | 743 | 75 | 405 | 954 |
| 51 | 496 | 380 | 73 | 71.5 | 83 | 495 | 514 | 770 | 75 | 405 | 966 |
| 57 | 512 | 393 | 73 | 72.4 | 97 | 511 | 576 | 824 | 75 | 405 | 982 |
| 59 | 528 | 408 | 73 | 72.4 | 114 | 530 | 593 | 840 | 75 | 405 | 997 |
All measurements in millimetres unless marked (°) for angles.
