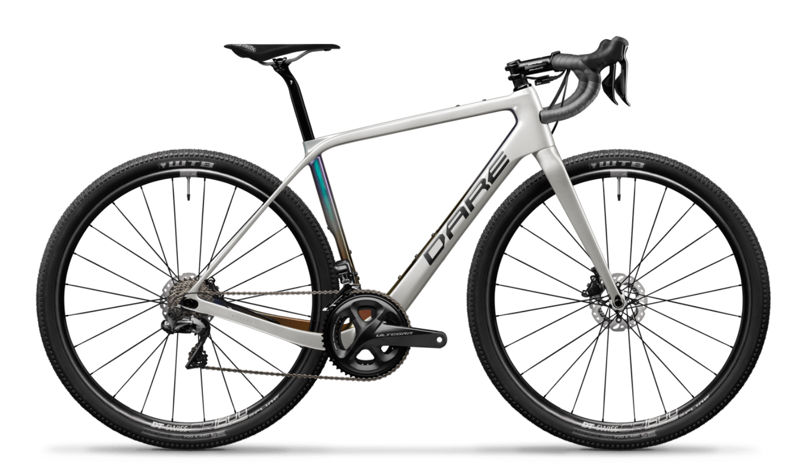

2019 Dare GFX geometry
Full frame geometry for the 2019 Dare GFX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 (XS) | 537 | 362 | 74.5 | 70 | 110 | 505 | 420 | 742 | 75 | 410 | 986 |
| 45 (S) | 560 | 364 | 74.3 | 70.8 | 130 | 522 | 450 | 766 | 75 | 410 | 989 |
| 48 (M) | 579 | 373 | 74 | 71 | 150 | 539 | 480 | 789 | 75 | 410 | 1002 |
| 50 (L) | 600 | 381 | 73.8 | 71.3 | 170 | 556 | 500 | 810 | 75 | 410 | 1015 |
| 52 (XL) | 620 | 389 | 73.5 | 71.3 | 190 | 573 | 520 | 829 | 75 | 410 | 1027 |
All measurements in millimetres unless marked (°) for angles.
