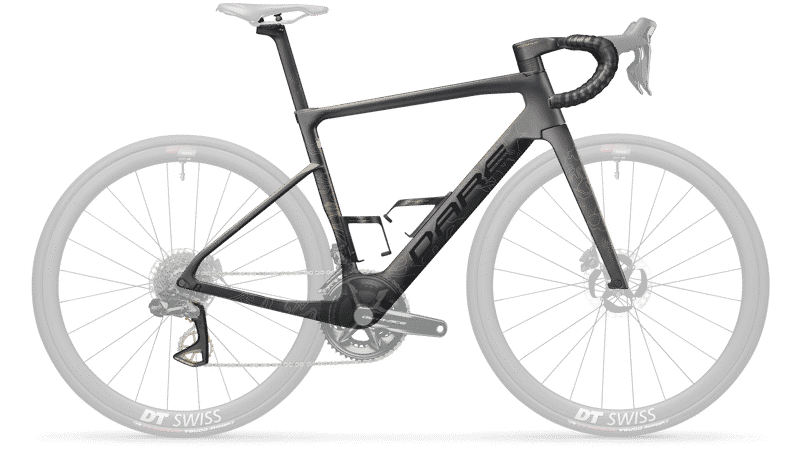

2025 Dare PA-AFO geometry
Full frame geometry for the 2025 Dare PA-AFO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 493 | 361 | 74.5 | 70.3 | 85 | 498 | 390 | 691 | 77 | 410 | 968 |
| XS | 505 | 367 | 74 | 71.2 | 94 | 512 | 420 | 720 | 77 | 410 | 969 |
| S | 520 | 374 | 74 | 72 | 110 | 523 | 450 | 741 | 77 | 410 | 975 |
| M | 539 | 381 | 73.5 | 73 | 124 | 541 | 480 | 772 | 77 | 410 | 974 |
| L | 560 | 389 | 73.5 | 73 | 149 | 555 | 507 | 795 | 77 | 410 | 987 |
| XL | 583 | 397 | 73 | 73.5 | 171 | 575 | 540 | 815 | 77 | 410 | 997 |
| 2XL | 606 | 405 | 73 | 73.5 | 195 | 590 | 560 | 836 | 77 | 410 | 1011 |
All measurements in millimetres unless marked (°) for angles.
