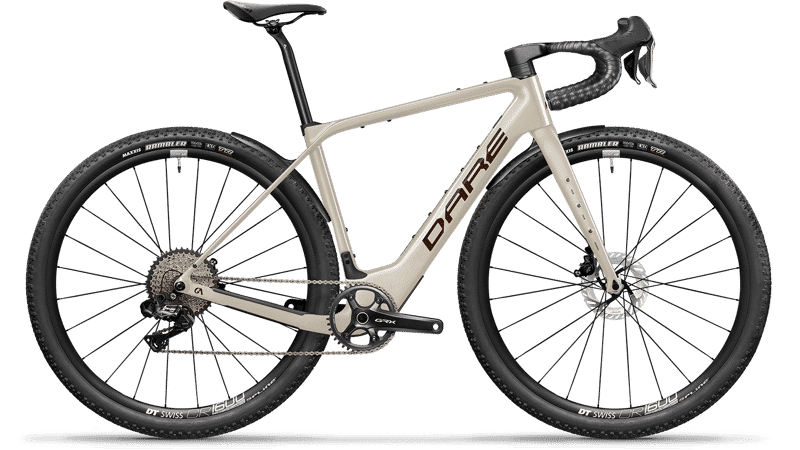

2025 Dare GA geometry
Full frame geometry for the 2025 Dare GA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 360 | 74.5 | 69 | 90 | 508 | 410 | 713 | 74 | 425 | 1001 |
| S | 534 | 369 | 74.3 | 70.5 | 105 | 522 | 430 | 732 | 74 | 425 | 1003 |
| M | 554 | 377 | 74 | 72 | 120 | 536 | 460 | 764 | 74 | 425 | 1004 |
| L | 576 | 386 | 73.8 | 72 | 145 | 551 | 480 | 779 | 74 | 425 | 1020 |
| XL | 602 | 394 | 73.5 | 72.5 | 170 | 567 | 520 | 815 | 74 | 425 | 1032 |
| XXL | 625 | 403 | 73.5 | 72.5 | 195 | 582 | 540 | 835 | 74 | 425 | 1048 |
All measurements in millimetres unless marked (°) for angles.
