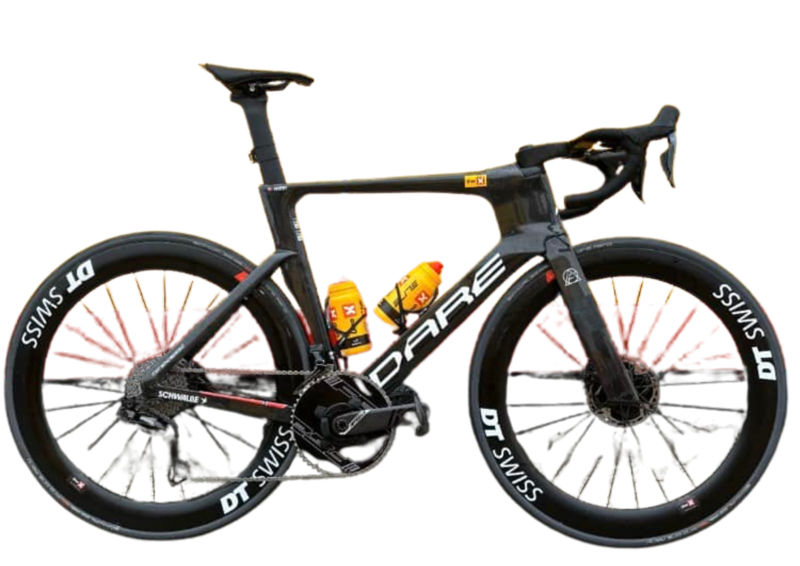

2024 Dare VA-AFO geometry
Full frame geometry for the 2024 Dare VA-AFO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 480 | 372 | 74 | 71 | 77 | 507 | 480 | 730 | 75 | 410 | 967 |
| XS | 500 | 383 | 74 | 71.5 | 96 | 519 | 500 | 749 | 75 | 410 | 982 |
| S | 520 | 395 | 74 | 72 | 117 | 544 | 520 | 770 | 73 | 410 | 997 |
| M | 541 | 407 | 74 | 72 | 138 | 562 | 540 | 790 | 73 | 410 | 1015 |
| L | 561 | 419 | 74 | 72.5 | 161 | 580 | 560 | 812 | 70 | 410 | 1030 |
All measurements in millimetres unless marked (°) for angles.
