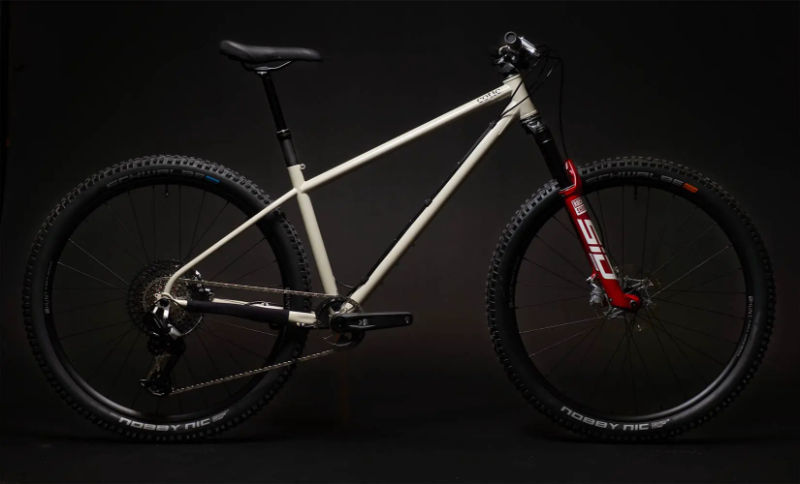

2026 Cotic Solaris geometry
Full frame geometry for the 2026 Cotic Solaris, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| C1 | 611 | 438 | 75 | 66 | 100 | 602 | 390 | 70 | 444 | 1166 |
| C2 | 620 | 456 | 75 | 66 | 110 | 622 | 417 | 70 | 444 | 1188 |
| C3 | 630 | 474 | 75 | 66 | 120 | 643 | 444 | 70 | 444 | 1210 |
| C4 | 639 | 492 | 75 | 66 | 130 | 663 | 471 | 70 | 444 | 1232 |
| C5 | 639 | 510 | 75 | 66 | 130 | 681 | 495 | 70 | 444 | 1250 |
All measurements in millimetres unless marked (°) for angles.
