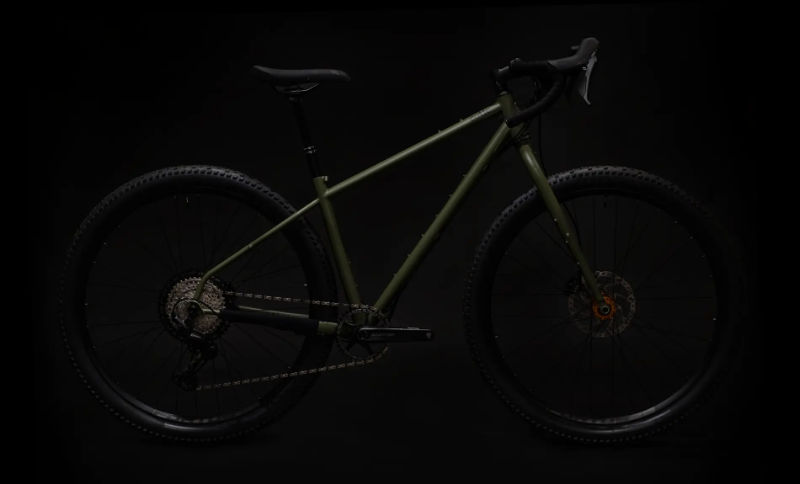

2026 Cotic Cascade Gen2 geometry
Full frame geometry for the 2026 Cotic Cascade Gen2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 607 | 357 | 74.5 | 68 | 100 | 532 | 400 | 70 | 439 | 1064 | 44 |
| S | 619 | 372 | 74 | 68 | 116 | 546 | 435 | 70 | 439 | 1077 | 44 |
| M | 640 | 393 | 74 | 69 | 133 | 575 | 470 | 70 | 439 | 1109 | 44 |
| L | 656 | 414 | 74 | 69 | 150 | 603 | 505 | 70 | 439 | 1136 | 44 |
| XL | 667 | 435 | 74 | 69 | 165 | 631 | 540 | 70 | 439 | 1163 | 44 |
All measurements in millimetres unless marked (°) for angles.
