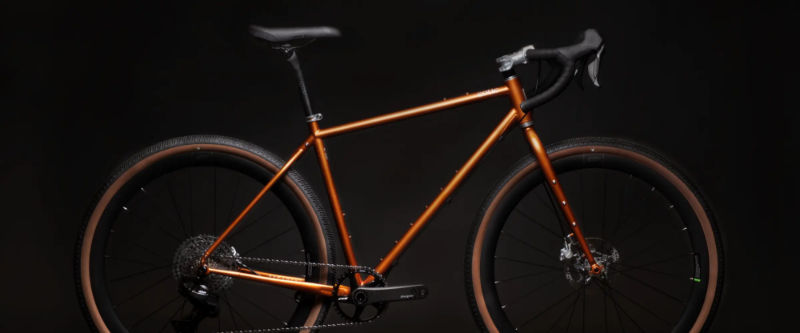

2026 Cotic Escapade Gen6 geometry
Full frame geometry for the 2026 Cotic Escapade Gen6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 569 | 384 | 74 | 69.5 | 100 | 547 | 450 | 75 | 435 | 1044 | 44 |
| SM | 578 | 397 | 74 | 69.5 | 110 | 563 | 480 | 75 | 435 | 1061 | 44 |
| MD | 595 | 410 | 74 | 70 | 125 | 580 | 510 | 75 | 435 | 1074 | 44 |
| LG | 610 | 425 | 74 | 70.5 | 140 | 600 | 540 | 75 | 435 | 1090 | 44 |
| XL | 623 | 441 | 74 | 70.5 | 155 | 620 | 570 | 75 | 435 | 1111 | 44 |
All measurements in millimetres unless marked (°) for angles.
