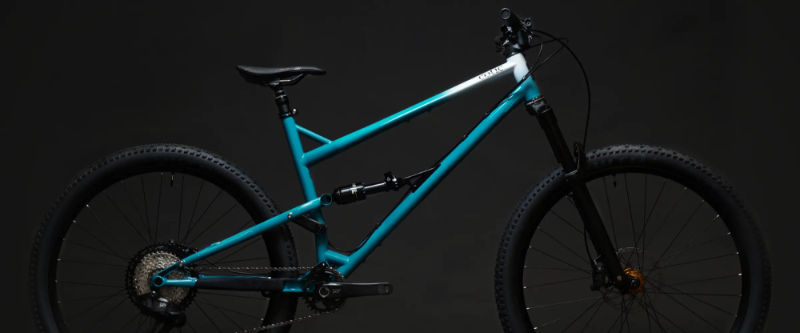

2026 Cotic FlareMAX Gen5 geometry
Full frame geometry for the 2026 Cotic FlareMAX Gen5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| C1 | 611 | 444 | 75.8 | 66 | 100 | 594 | 390 | 38 | 448 | 1194 |
| C2 | 620 | 463 | 75.8 | 66 | 110 | 616 | 417 | 38 | 448 | 1217 |
| C3 | 629 | 482 | 76.2 | 66 | 120 | 633 | 444 | 38 | 448 | 1240 |
| C4 | 639 | 501 | 76.2 | 66 | 130 | 655 | 471 | 38 | 448 | 1264 |
| C5 | 639 | 520 | 76.2 | 66 | 130 | 674 | 496 | 38 | 448 | 1283 |
All measurements in millimetres unless marked (°) for angles.
