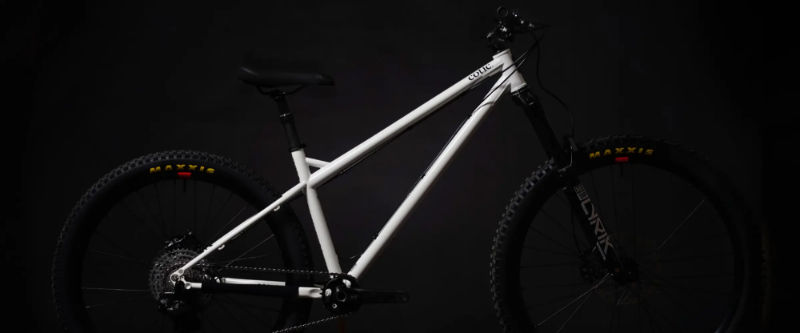

2026 Cotic BFe geometry
Full frame geometry for the 2026 Cotic BFe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| C1 | 628 | 432 | 74.7 | 64.7 | 100 | 606 | 390 | 67 | 445 | 1187 |
| C2 | 637 | 453 | 74.7 | 64.7 | 110 | 628 | 417 | 67 | 445 | 1210 |
| C3 | 646 | 472 | 74.7 | 64.7 | 120 | 649 | 444 | 67 | 445 | 1233 |
| C4 | 655 | 491 | 74.7 | 64.7 | 130 | 671 | 471 | 67 | 445 | 1256 |
| C5 | 664 | 510 | 74.7 | 64.7 | 140 | 692 | 495 | 67 | 445 | 1279 |
All measurements in millimetres unless marked (°) for angles.
