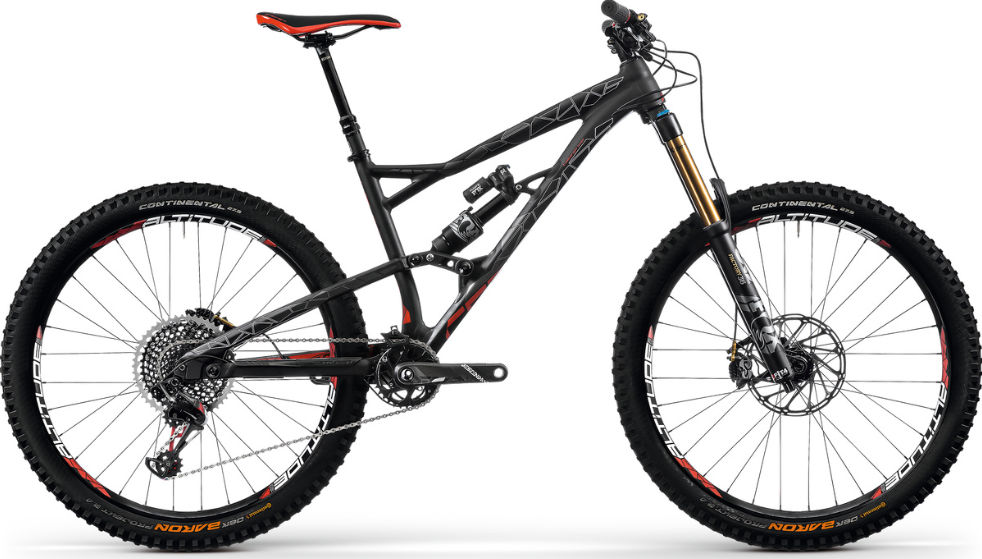

2018 Centurion Trailbanger geometry
Full frame geometry for the 2018 Centurion Trailbanger, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 595 | 403 | 75 | 65.5 | 95 | 562 | 380 | 710 | 15 | 428 | 1143 |
| 43 | 595 | 433 | 75 | 65.5 | 95 | 592 | 430 | 747 | 15 | 428 | 1173 |
| 48 | 617 | 450 | 75 | 65.5 | 120 | 615 | 480 | 782 | 15 | 428 | 1200 |
All measurements in millimetres unless marked (°) for angles.
