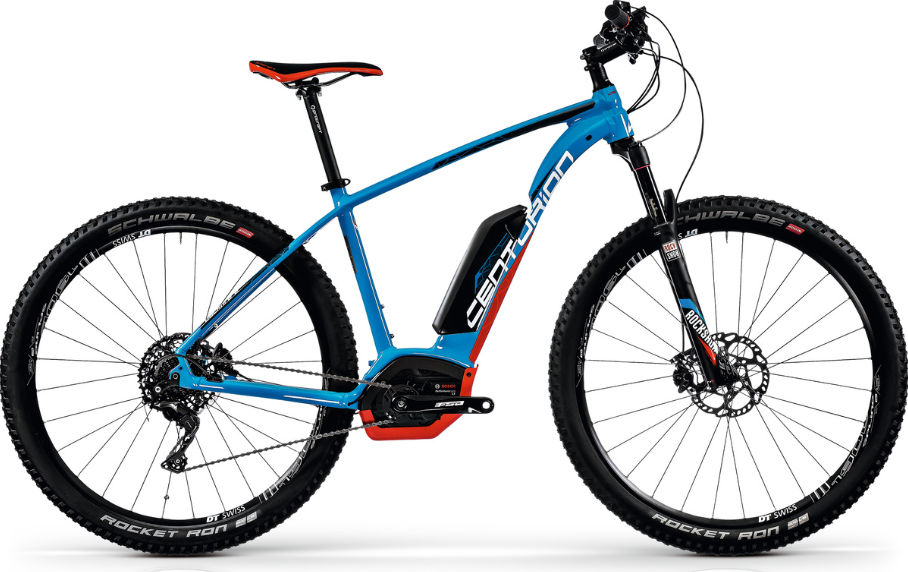

2018 Centurion Backfire E geometry
Full frame geometry for the 2018 Centurion Backfire E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 (27.5) | 602 | 397 | 73.5 | 69 | 110 | 575 | 380 | 747 | 45 | 448 | 1103 |
| 43 (27.5) | 622 | 410 | 73.5 | 69.2 | 130 | 594 | 430 | 780 | 45 | 448 | 1121 |
| 43 (29) | 624 | 410 | 73.5 | 70.2 | 90 | 595 | 430 | 780 | 63 | 466 | 1120 |
| 48 (29) | 644 | 423 | 73.5 | 70.5 | 110 | 614 | 480 | 815 | 63 | 466 | 1137 |
| 53 (29) | 664 | 436 | 73.5 | 70.8 | 130 | 633 | 530 | 851 | 63 | 466 | 1154 |
| 58 (29) | 684 | 449 | 73.5 | 71 | 150 | 651 | 580 | 884 | 63 | 466 | 1170 |
All measurements in millimetres unless marked (°) for angles.
