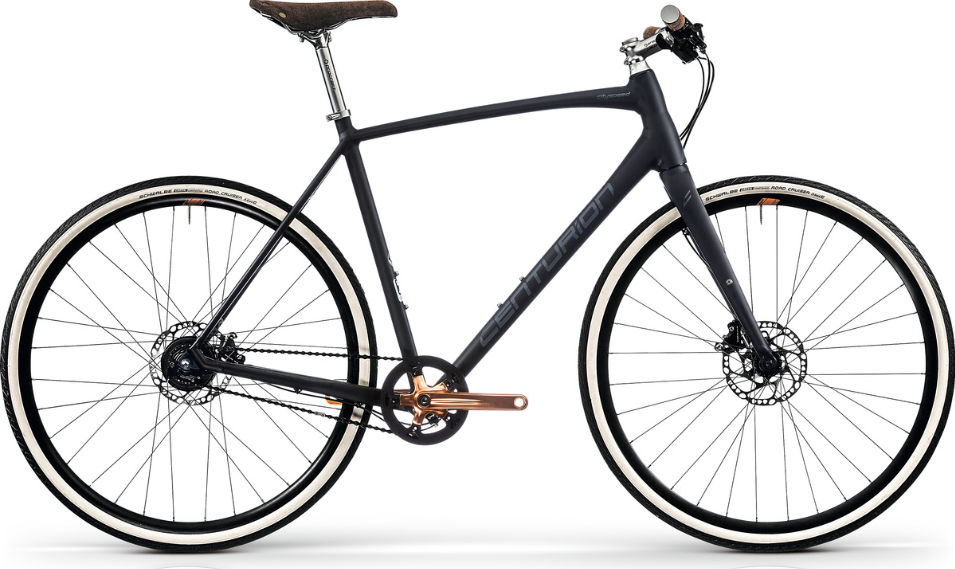

2018 Centurion City Speed geometry
Full frame geometry for the 2018 Centurion City Speed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 546 | 382 | 74 | 70.5 | 120 | 539 | 470 | 70 | 440 | 1038 |
| 50 | 566 | 390 | 74 | 70.8 | 140 | 552 | 500 | 70 | 440 | 1050 |
| 53 | 586 | 398 | 74 | 71 | 160 | 566 | 530 | 70 | 440 | 1063 |
| 56 | 606 | 406 | 74 | 71.2 | 180 | 580 | 560 | 70 | 440 | 1075 |
| 59 | 626 | 414 | 74 | 71.5 | 200 | 593 | 590 | 70 | 440 | 1087 |
| 62 | 646 | 422 | 74 | 71.8 | 220 | 607 | 620 | 70 | 440 | 1099 |
All measurements in millimetres unless marked (°) for angles.
