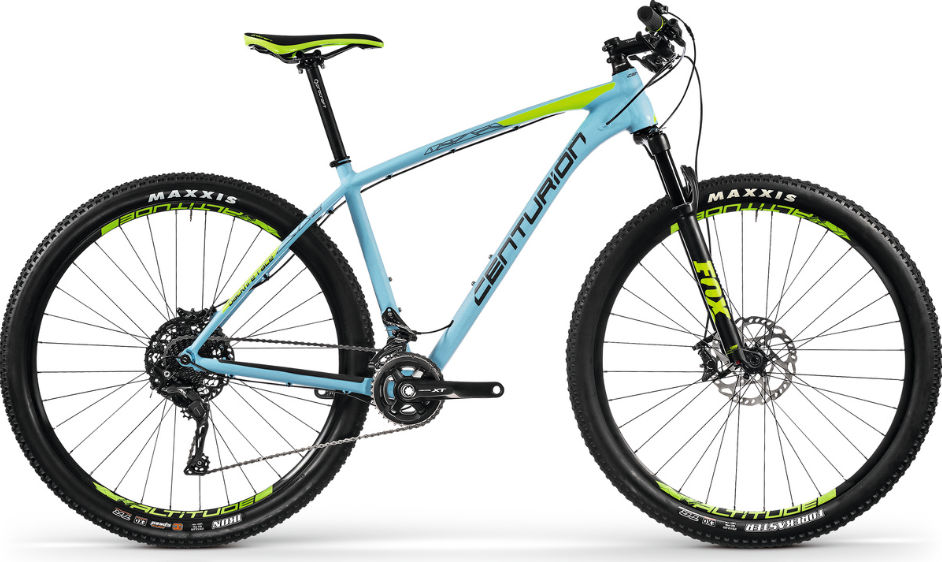

2018 Centurion Backfire Race geometry
Full frame geometry for the 2018 Centurion Backfire Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 616 | 397 | 73 | 70.5 | 95 | 585 | 380 | 755 | 63 | 440 | 1077 |
| 43 | 625 | 414 | 73 | 70.5 | 105 | 605 | 430 | 782 | 63 | 440 | 1097 |
| 48 | 640 | 424 | 73 | 70.5 | 120 | 620 | 480 | 815 | 63 | 440 | 1113 |
| 53 | 654 | 435 | 73 | 70.5 | 135 | 635 | 530 | 849 | 63 | 440 | 1129 |
| 58 | 677 | 448 | 73 | 70.5 | 160 | 655 | 580 | 888 | 63 | 440 | 1150 |
All measurements in millimetres unless marked (°) for angles.
