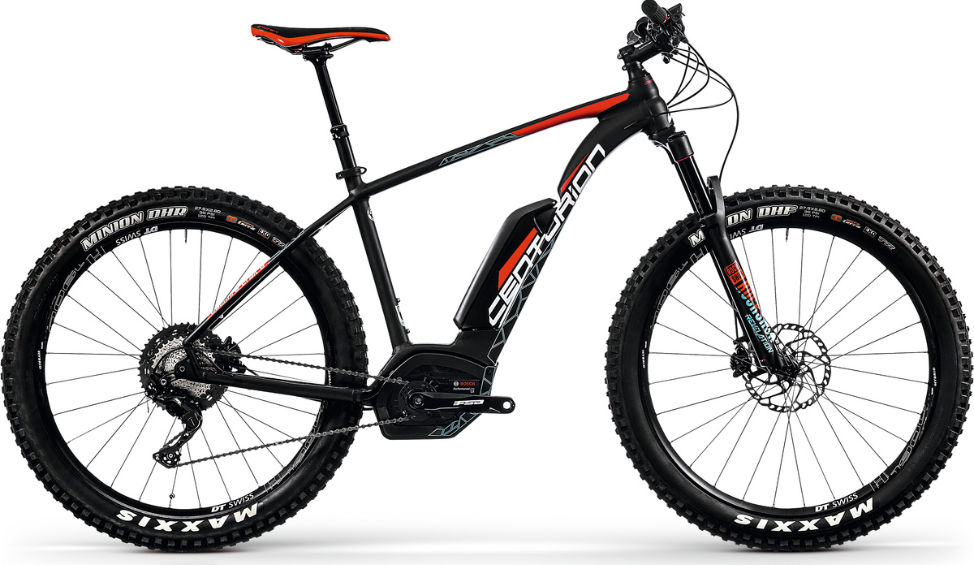

2018 Centurion Backfire Trail E geometry
Full frame geometry for the 2018 Centurion Backfire Trail E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 620 | 426 | 73.5 | 67.5 | 90 | 610 | 430 | 773 | 63 | 466 | 1174 |
| 48 | 638 | 440 | 73.5 | 67.5 | 110 | 629 | 480 | 807 | 63 | 466 | 1195 |
| 53 | 657 | 453 | 73.5 | 67.5 | 130 | 648 | 530 | 847 | 63 | 466 | 1216 |
| 58 | 675 | 467 | 73.5 | 67.5 | 150 | 667 | 580 | 881 | 63 | 466 | 1238 |
All measurements in millimetres unless marked (°) for angles.
