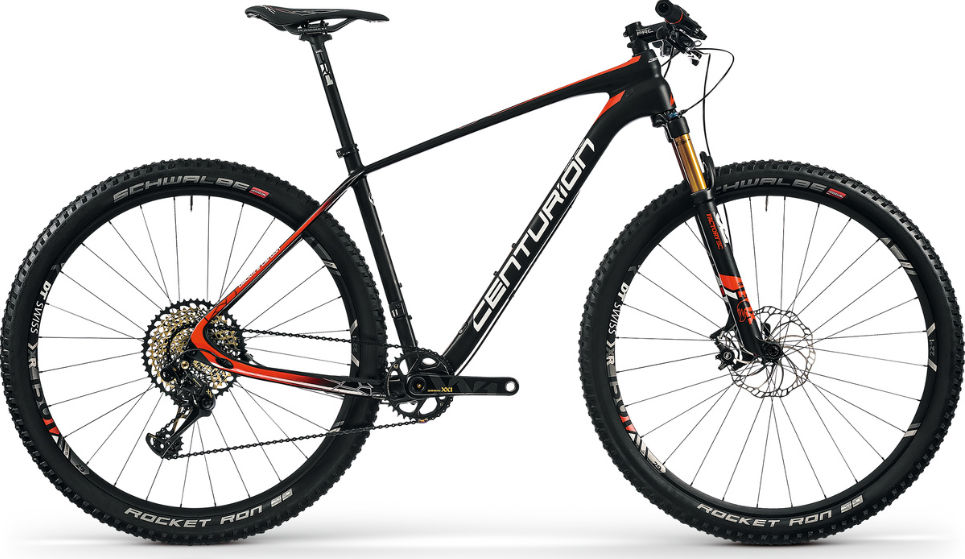

2018 Centurion Backfire Carbon geometry
Full frame geometry for the 2018 Centurion Backfire Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 610 | 404 | 73 | 70.5 | 89 | 591 | 380 | 733 | 63 | 433 | 1075 |
| 43 | 621 | 414 | 73 | 70.5 | 100 | 604 | 430 | 764 | 63 | 433 | 1089 |
| 48 | 640 | 424 | 73 | 70.5 | 120 | 620 | 480 | 799 | 63 | 433 | 1106 |
| 53 | 656 | 434 | 73 | 71 | 135 | 635 | 530 | 833 | 63 | 433 | 1116 |
All measurements in millimetres unless marked (°) for angles.
