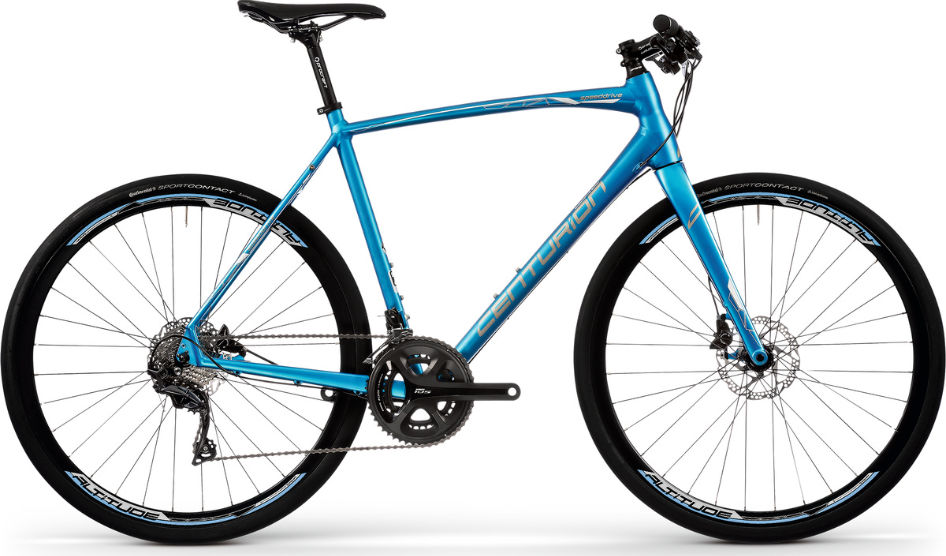

2018 Centurion Speeddrive geometry
Full frame geometry for the 2018 Centurion Speeddrive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 537 | 390 | 73 | 71.5 | 120 | 554 | 470 | 744 | 65 | 440 | 1030 |
| 50 | 556 | 397 | 73 | 71.5 | 140 | 567 | 500 | 768 | 65 | 440 | 1044 |
| 53 | 572 | 404 | 73 | 72 | 155 | 579 | 530 | 792 | 65 | 440 | 1051 |
| 56 | 591 | 411 | 73 | 72 | 175 | 592 | 560 | 816 | 65 | 440 | 1065 |
| 59 | 607 | 418 | 73 | 72.5 | 190 | 604 | 590 | 840 | 65 | 440 | 1072 |
| 62 | 627 | 425 | 73 | 72.5 | 210 | 617 | 620 | 865 | 65 | 440 | 1085 |
All measurements in millimetres unless marked (°) for angles.
