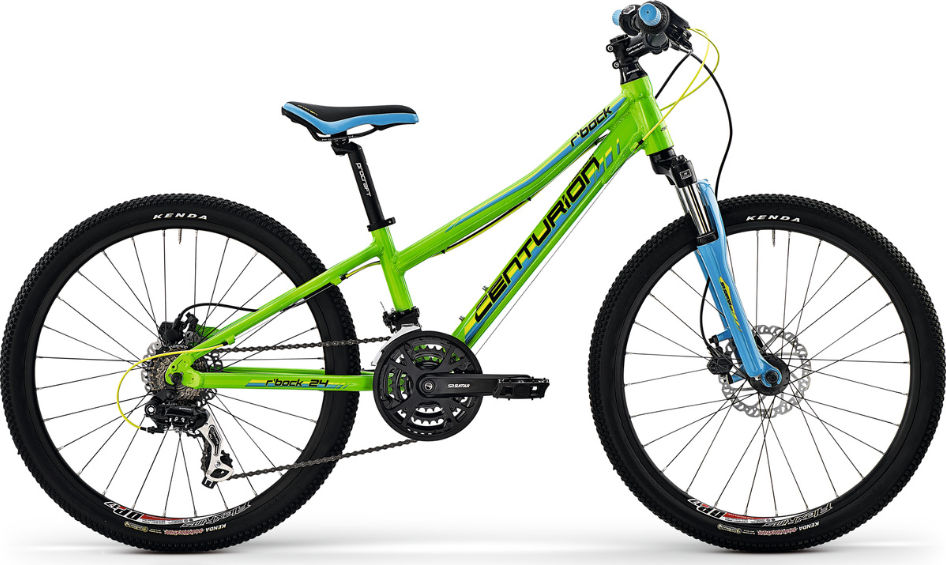

2018 Centurion R'Bock geometry
Full frame geometry for the 2018 Centurion R'Bock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 435 | 330 | 74 | 70 | 110 | 455 | 250 | 8 | 380 | 906 |
| 24 | 495 | 359 | 73 | 69 | 125 | 510 | 280 | 25 | 420 | 999 |
All measurements in millimetres unless marked (°) for angles.
