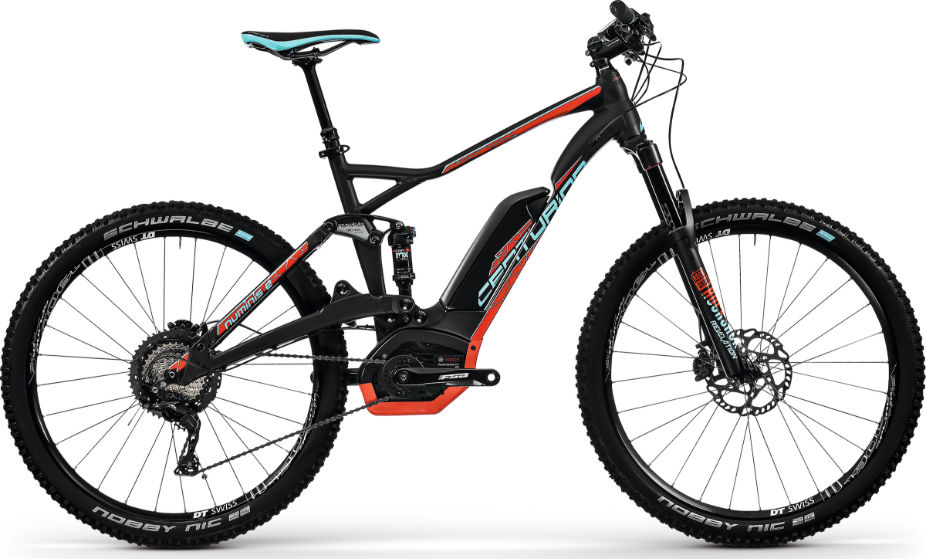

2018 Centurion Numinis E geometry
Full frame geometry for the 2018 Centurion Numinis E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 568 | 381 | 73 | 69.5 | 95 | 555 | 380 | 725 | 9 | 460 | 1095 |
| 43 | 583 | 402 | 73 | 69.5 | 110 | 580 | 430 | 740 | 9 | 460 | 1121 |
| 48 | 606 | 416 | 73 | 69.5 | 135 | 601 | 480 | 772 | 9 | 460 | 1144 |
| 53 | 629 | 428 | 73 | 69.5 | 160 | 620 | 530 | 809 | 9 | 460 | 1164 |
All measurements in millimetres unless marked (°) for angles.
