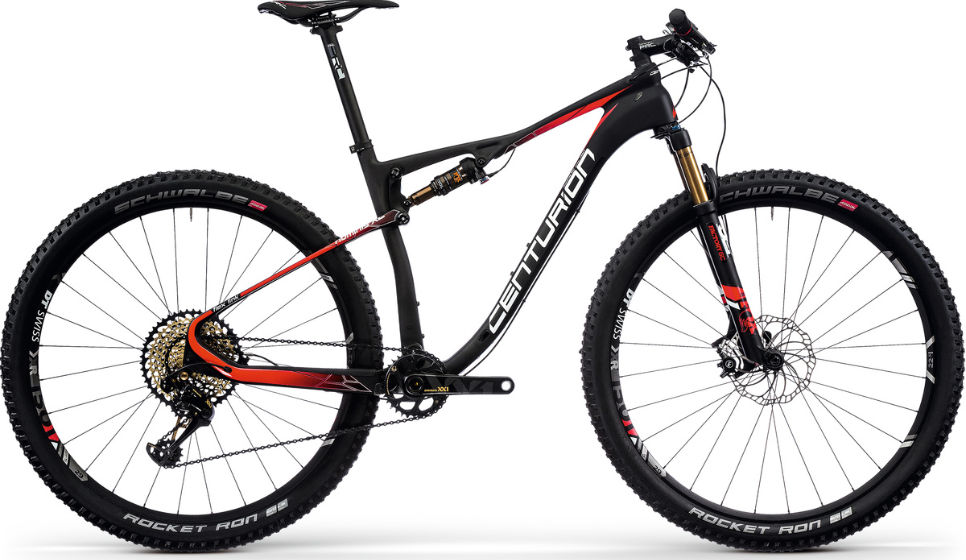

2018 Centurion Numinis Carbon XC geometry
Full frame geometry for the 2018 Centurion Numinis Carbon XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 600 | 421 | 75.7 | 70.5 | 100 | 574 | 430 | 773 | 44 | 435 | — |
| 48 | 619 | 443 | 75.5 | 70.5 | 120 | 603 | 480 | 799 | 44 | 435 | 1129 |
| 53 | 647 | 464 | 75.3 | 70.5 | 150 | 634 | 530 | 816 | 44 | 435 | 1160 |
All measurements in millimetres unless marked (°) for angles.
