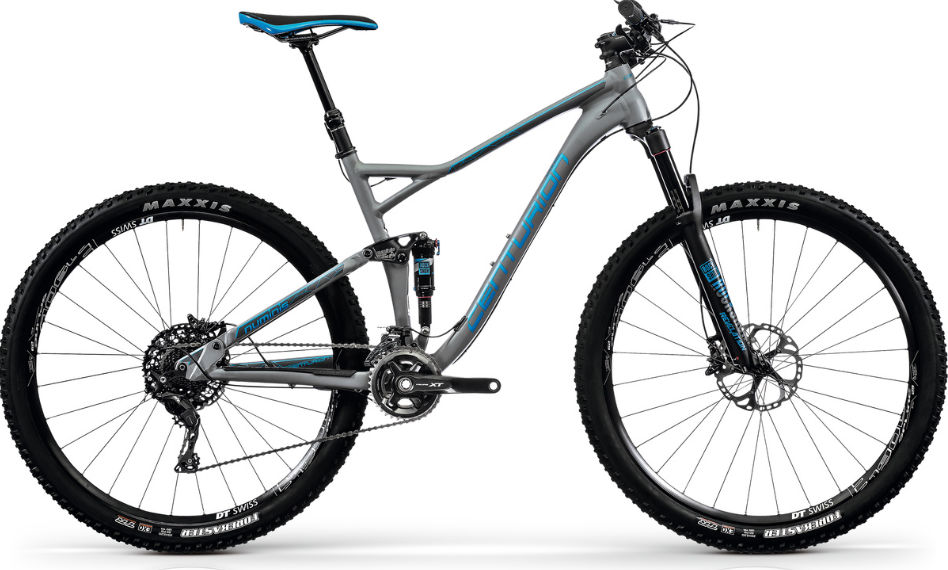

2018 Centurion Numinis Aluminium geometry
Full frame geometry for the 2018 Centurion Numinis Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 (27.5) | 583 | 403 | 74 | 69.5 | 95 | 570 | 380 | 687 | 22 | 430 | 1089 |
| 43 (27.5) | 599 | 414 | 74 | 70 | 110 | 586 | 430 | 724 | 22 | 430 | 1100 |
| 38 (29) | 608 | 394 | 74 | 69 | 95 | 568 | 380 | 695 | 34 | 440 | 1102 |
| 43 (29) | 617 | 411 | 74 | 69 | 105 | 588 | 430 | 737 | 34 | 440 | 1123 |
| 48 (27.5) | 618 | 428 | 74 | 70 | 130 | 605 | 480 | 769 | 22 | 430 | 1121 |
| 48 (29) | 631 | 426 | 74 | 69 | 120 | 607 | 480 | 778 | 34 | 440 | 1143 |
| 53 (29) | 650 | 440 | 74 | 69 | 140 | 626 | 530 | 819 | 34 | 440 | 1164 |
| 58 (29) | 669 | 453 | 74 | 69 | 160 | 645 | 580 | 860 | 34 | 440 | 1185 |
All measurements in millimetres unless marked (°) for angles.
