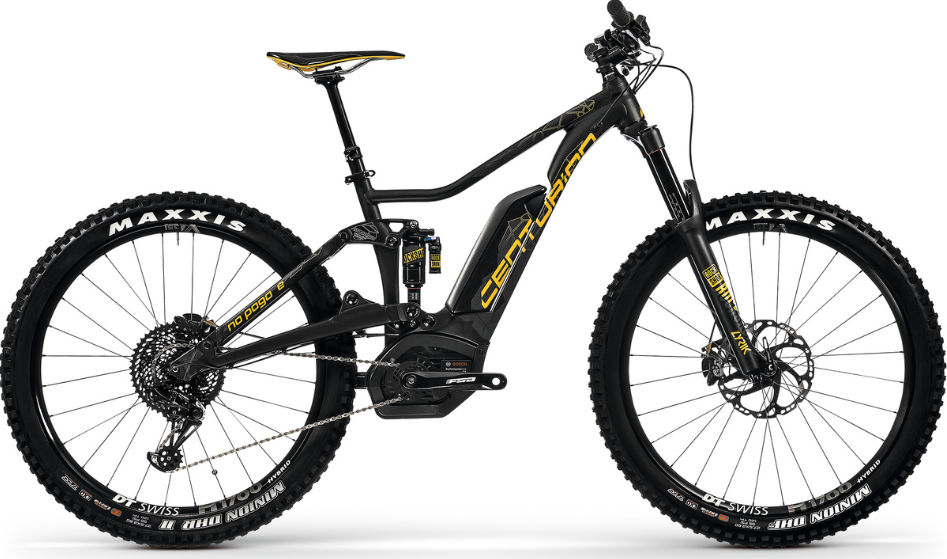

2018 Centurion No Pogo E geometry
Full frame geometry for the 2018 Centurion No Pogo E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 610 | 407 | 74 | 67 | 95 | 582 | 430 | 749 | 23 | 470 | 1181 |
| 48 | 633 | 423 | 74 | 67 | 120 | 604 | 480 | 777 | 23 | 470 | 1206 |
| 53 | 656 | 439 | 74 | 67 | 145 | 627 | 530 | 813 | 23 | 470 | 1232 |
All measurements in millimetres unless marked (°) for angles.
