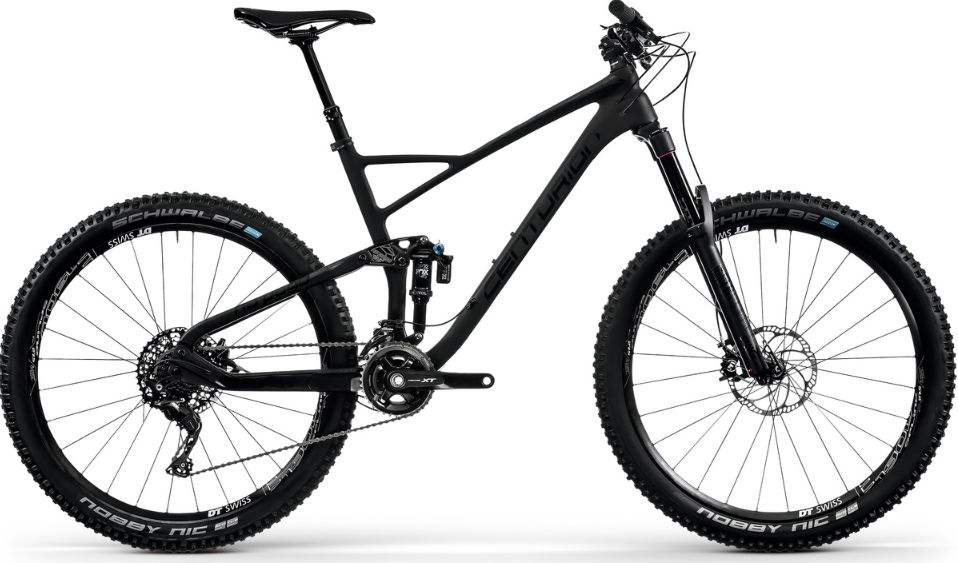

2018 Centurion No Pogo Carbon geometry
Full frame geometry for the 2018 Centurion No Pogo Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 590 | 398 | 75 | 67 | 95 | 556 | 380 | 710 | 15 | 428 | 1118 |
| 43 | 594 | 419 | 74 | 67 | 100 | 589 | 430 | 748 | 15 | 428 | 1140 |
| 48 | 613 | 434 | 74 | 67 | 120 | 610 | 480 | 782 | 15 | 428 | 1164 |
| 53 | 634 | 449 | 74 | 67.5 | 140 | 631 | 530 | 810 | 15 | 428 | 1181 |
All measurements in millimetres unless marked (°) for angles.
