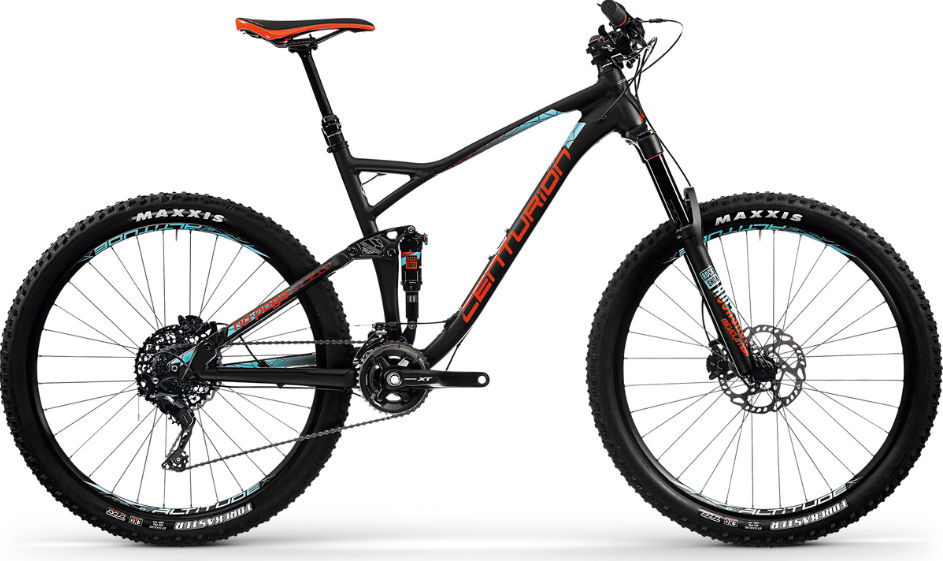

2018 Centurion No Pogo Aluminium geometry
Full frame geometry for the 2018 Centurion No Pogo Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 589 | 404 | 74 | 67 | 95 | 573 | 380 | 699 | 14 | 432 | 1128 |
| 43 | 593 | 419 | 74 | 67 | 100 | 589 | 430 | 734 | 14 | 432 | 1144 |
| 48 | 612 | 433 | 74 | 67 | 120 | 608 | 480 | 776 | 14 | 432 | 1166 |
| 53 | 633 | 447 | 74 | 67.5 | 140 | 628 | 530 | 818 | 14 | 432 | 1182 |
All measurements in millimetres unless marked (°) for angles.
