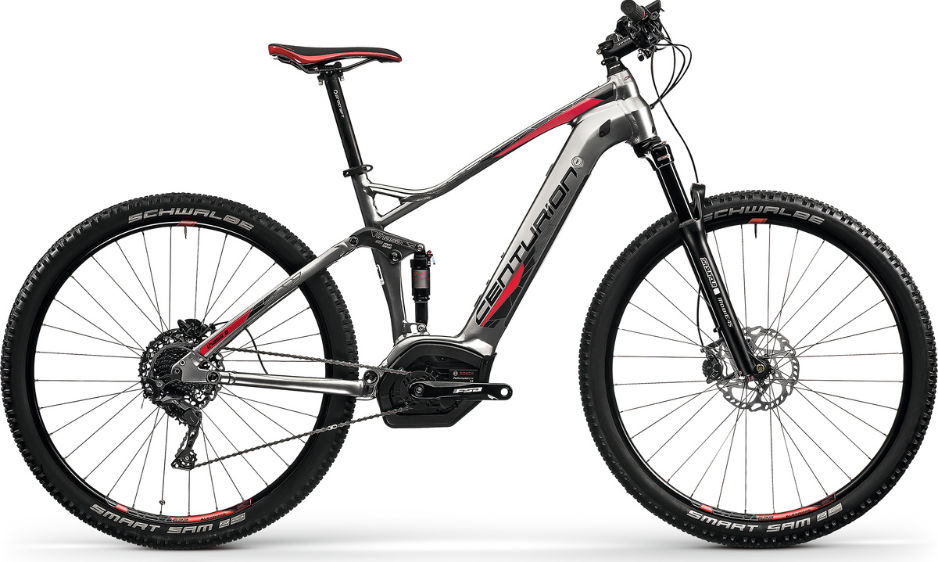

2018 Centurion Lhasa E Internal geometry
Full frame geometry for the 2018 Centurion Lhasa E Internal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 (27.5) | 613 | 385 | 73.5 | 67.5 | 150 | 567 | 380 | 732 | 26 | 484 | 1160 |
| 43 (27.5) | 633 | 399 | 73.5 | 67.8 | 170 | 586 | 430 | 747 | 26 | 484 | 1178 |
| 43 (29) | 636 | 400 | 73.5 | 68.8 | 130 | 588 | 430 | 748 | 45 | 499 | 1174 |
| 48 (29) | 656 | 413 | 73.5 | 69 | 150 | 607 | 480 | 767 | 45 | 499 | 1191 |
| 53 (29) | 676 | 426 | 73.5 | 69.2 | 170 | 626 | 530 | 798 | 45 | 499 | 1209 |
| 58 (29) | 696 | 439 | 73.5 | 69.5 | 190 | 645 | 580 | 815 | 45 | 499 | 1226 |
All measurements in millimetres unless marked (°) for angles.
