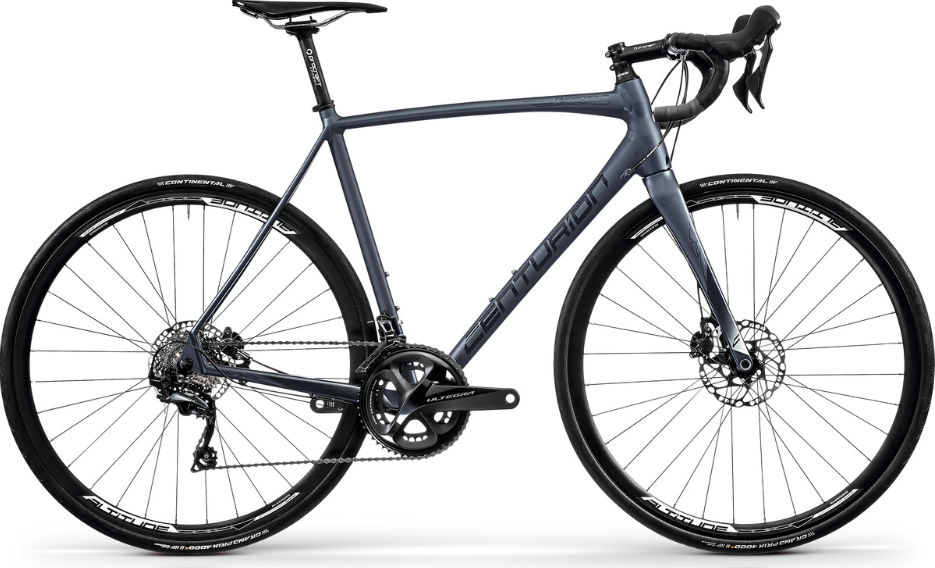

2018 Centurion Hyperdrive geometry
Full frame geometry for the 2018 Centurion Hyperdrive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 530 | 368 | 73 | 72 | 125 | 530 | 470 | 740 | 68 | 408 | 968 |
| 50 | 546 | 373 | 73 | 72.5 | 140 | 540 | 500 | 762 | 68 | 408 | 973 |
| 53 | 562 | 378 | 73 | 73 | 155 | 550 | 530 | 786 | 68 | 408 | 979 |
| 56 | 576 | 384 | 73 | 73 | 170 | 560 | 560 | 809 | 68 | 408 | 989 |
| 59 | 592 | 391 | 73 | 73.5 | 185 | 572 | 590 | 833 | 68 | 408 | 995 |
| 62 | 616 | 400 | 73 | 73.5 | 210 | 588 | 620 | 860 | 68 | 408 | 1011 |
All measurements in millimetres unless marked (°) for angles.
