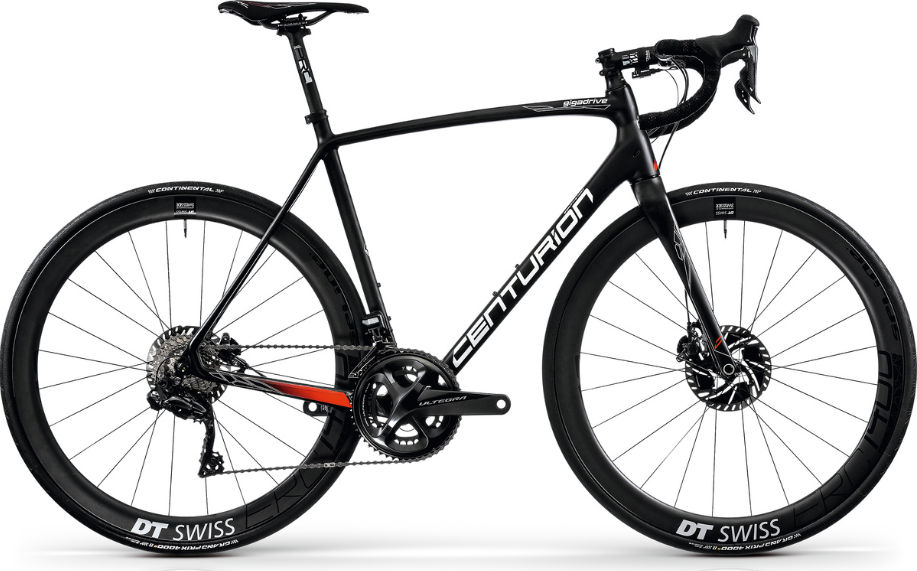

2018 Centurion Gigadrive geometry
Full frame geometry for the 2018 Centurion Gigadrive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 546 | 373 | 73 | 72.5 | 140 | 540 | 500 | 753 | 68 | 405 | 970 |
| 53 | 561 | 379 | 73 | 73 | 154 | 550 | 530 | 775 | 68 | 405 | 976 |
| 56 | 576 | 384 | 73 | 73 | 170 | 560 | 560 | 798 | 68 | 405 | 986 |
| 59 | 593 | 391 | 73 | 73.5 | 186 | 572 | 590 | 822 | 68 | 405 | 992 |
All measurements in millimetres unless marked (°) for angles.
