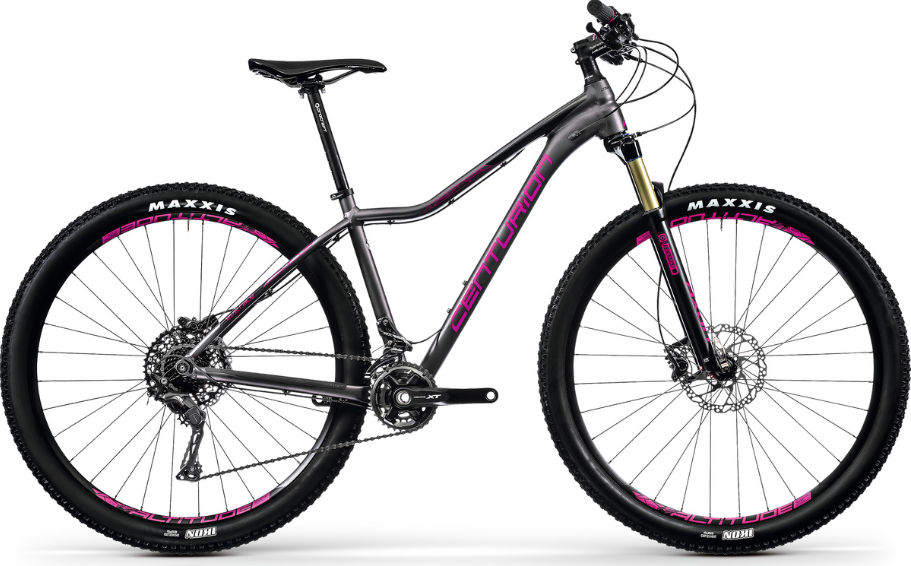

2018 Centurion EVE Race geometry
Full frame geometry for the 2018 Centurion EVE Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 616 | 373 | 73 | 70.5 | 95 | 561 | 380 | 685 | 63 | 440 | 1053 |
| 43 | 630 | 387 | 73 | 70.5 | 110 | 580 | 430 | 714 | 63 | 440 | 1072 |
| 48 | 651 | 399 | 73 | 71 | 130 | 598 | 480 | 750 | 63 | 440 | 1086 |
All measurements in millimetres unless marked (°) for angles.
