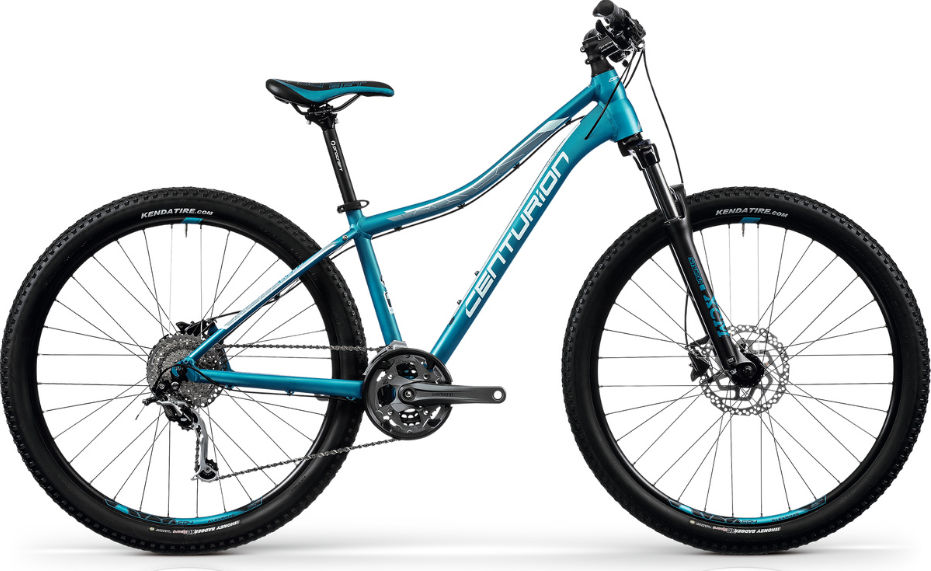

2018 Centurion EVE Pro geometry
Full frame geometry for the 2018 Centurion EVE Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33 (27.5) | 588 | 363 | 73 | 69 | 110 | 543 | 330 | 662 | 45 | 430 | 1044 |
| 38 (27.5) | 607 | 375 | 73 | 69 | 130 | 561 | 380 | 694 | 45 | 430 | 1064 |
| 43 (27.5) | 626 | 387 | 73 | 69 | 150 | 578 | 430 | 727 | 45 | 430 | 1082 |
| 43 (29) | 626 | 387 | 73 | 69 | 115 | 578 | 430 | 724 | 63 | 440 | 1093 |
| 48 (29) | 645 | 399 | 73 | 69 | 135 | 596 | 480 | 756 | 63 | 440 | 1112 |
All measurements in millimetres unless marked (°) for angles.
