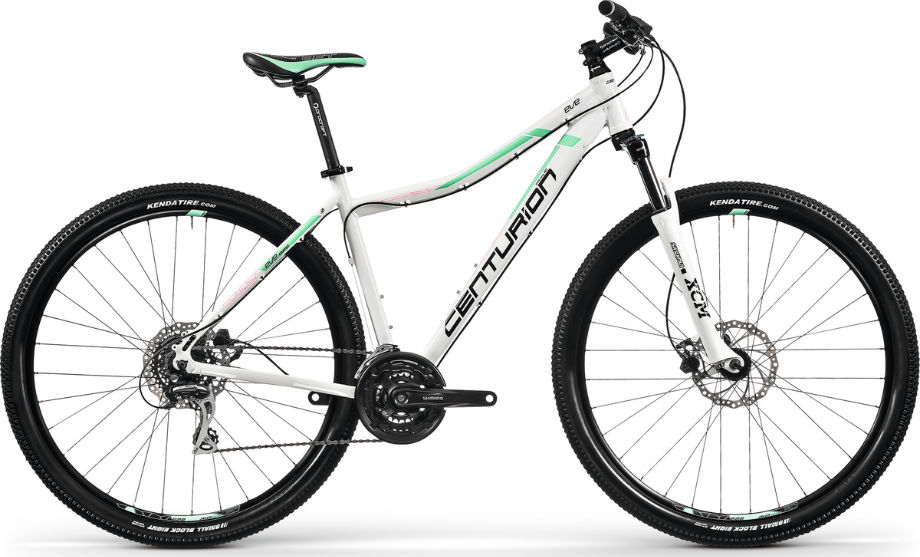

2018 Centurion EVE Comp geometry
Full frame geometry for the 2018 Centurion EVE Comp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33 (27.5) | 599 | 362 | 73 | 69 | 100 | 545 | 330 | 677 | 45 | 430 | 1047 |
| 38 (27.5) | 618 | 373 | 73 | 69 | 120 | 562 | 380 | 689 | 45 | 430 | 1066 |
| 43 (27.5) | 637 | 384 | 73 | 69 | 140 | 579 | 430 | 725 | 45 | 430 | 1084 |
| 43 (29) | 637 | 384 | 73 | 69.5 | 100 | 579 | 430 | 712 | 63 | 440 | 1083 |
| 48 (29) | 656 | 395 | 73 | 69.5 | 120 | 595 | 480 | 743 | 63 | 440 | 1101 |
All measurements in millimetres unless marked (°) for angles.
