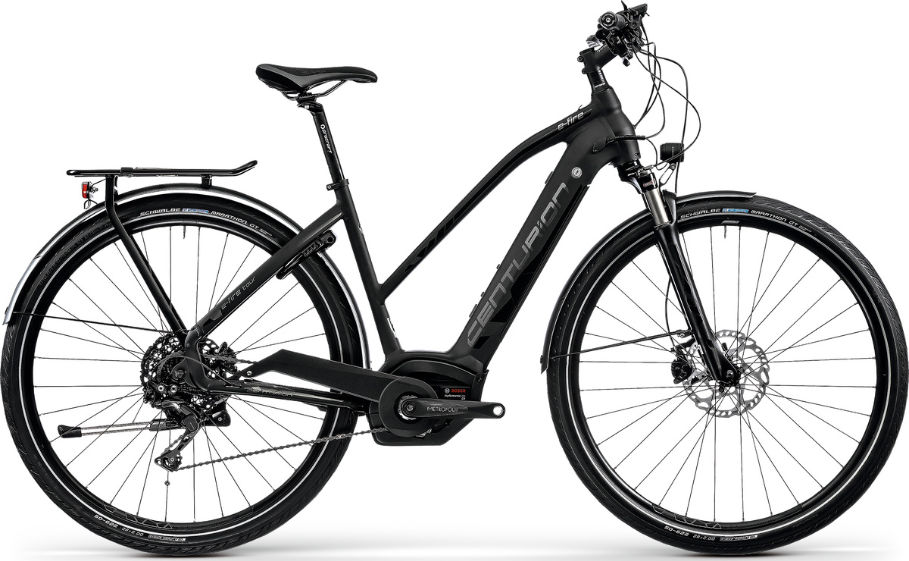

2018 Centurion E Fire Tour geometry
Full frame geometry for the 2018 Centurion E Fire Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 624 | 375 | 72.6 | 69.6 | 140 | 571 | 430 | 655 | 67 | 465 | 1088 |
| 48 | 643 | 389 | 72.6 | 69.6 | 160 | 590 | 480 | 660 | 67 | 465 | 1108 |
| 53 | 664 | 400 | 72.6 | 70.1 | 180 | 608 | 530 | 668 | 67 | 465 | 1121 |
| 58 | 683 | 411 | 72.6 | 70.1 | 200 | 625 | 580 | 677 | 67 | 465 | 1139 |
All measurements in millimetres unless marked (°) for angles.
