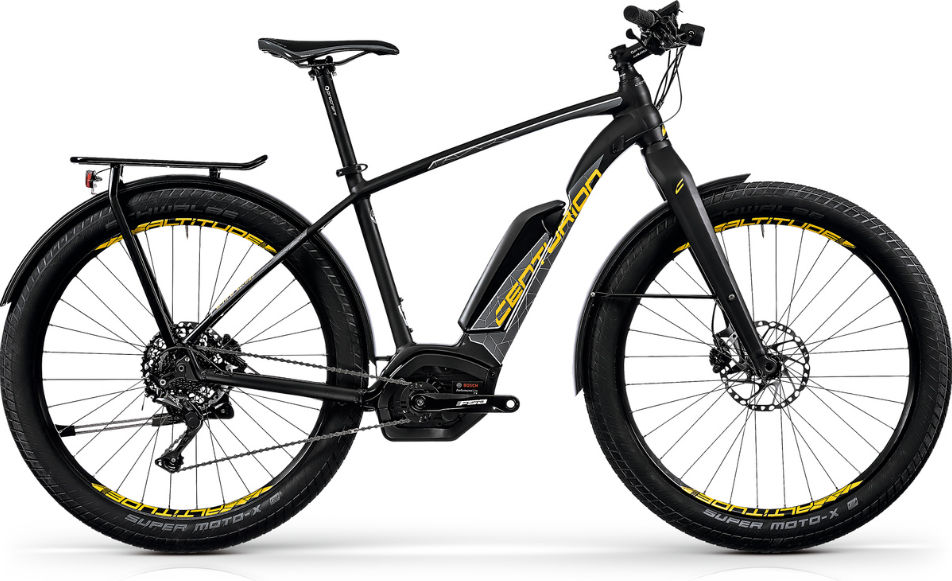

2018 Centurion E Fire Street geometry
Full frame geometry for the 2018 Centurion E Fire Street, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 608 | 401 | 73.5 | 69 | 110 | 581 | 430 | 761 | 68 | 466 | 1124 |
| 48 | 628 | 414 | 73.5 | 69.3 | 130 | 600 | 480 | 769 | 68 | 466 | 1142 |
| 53 | 648 | 427 | 73.5 | 69.5 | 150 | 619 | 530 | 832 | 68 | 466 | 1159 |
| 58 | 668 | 440 | 73.5 | 69.8 | 170 | 683 | 580 | 870 | 68 | 466 | 1177 |
All measurements in millimetres unless marked (°) for angles.
