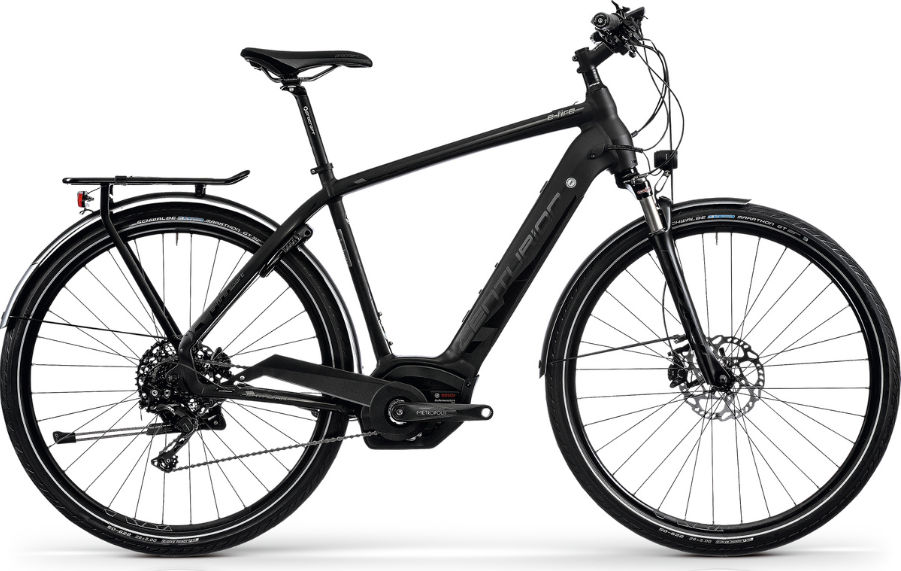

2018 Centurion E Fire Sport geometry
Full frame geometry for the 2018 Centurion E Fire Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 617 | 379 | 72.6 | 70.1 | 130 | 572 | 430 | 761 | 67 | 465 | 1083 |
| 48 | 636 | 391 | 72.6 | 70.1 | 150 | 590 | 480 | 797 | 67 | 465 | 1101 |
| 53 | 657 | 403 | 72.6 | 70.6 | 170 | 609 | 530 | 833 | 67 | 465 | 1116 |
| 58 | 676 | 416 | 72.6 | 70.6 | 190 | 628 | 580 | 874 | 67 | 465 | 1135 |
All measurements in millimetres unless marked (°) for angles.
