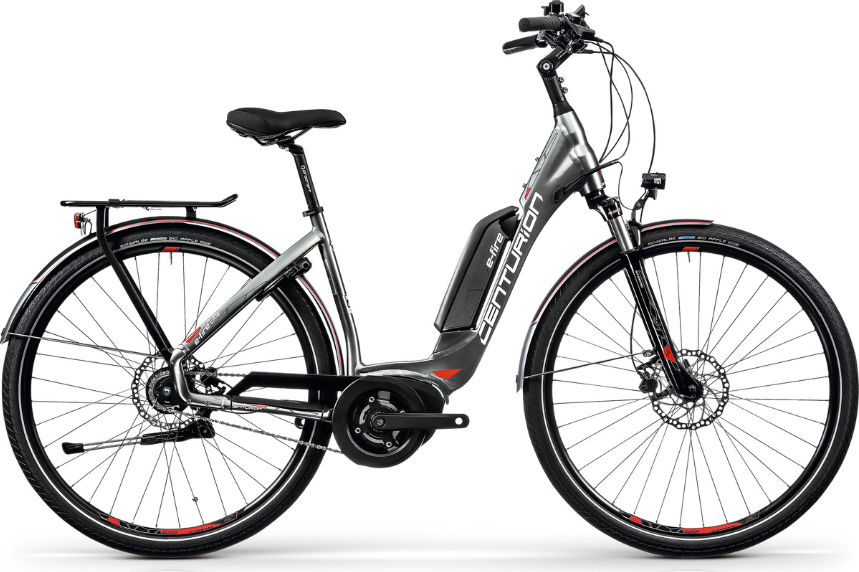

2018 Centurion E Fire City geometry
Full frame geometry for the 2018 Centurion E Fire City, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 (26) | 603 | 382 | 73 | 68.5 | 180 | 566 | 380 | 417 | 35 | 440 | 1087 |
| 43 (26) | 621 | 394 | 73 | 68.5 | 200 | 584 | 430 | 417 | 35 | 440 | 1107 |
| 43 (29) | 643 | 388 | 72.6 | 69.6 | 160 | 589 | 430 | 418 | 67 | 465 | 1107 |
| 48 (29) | 662 | 399 | 72.6 | 69.6 | 180 | 606 | 480 | 418 | 67 | 465 | 1125 |
| 53 (29) | 680 | 411 | 72.6 | 69.6 | 200 | 624 | 530 | 418 | 67 | 465 | 1144 |
All measurements in millimetres unless marked (°) for angles.
