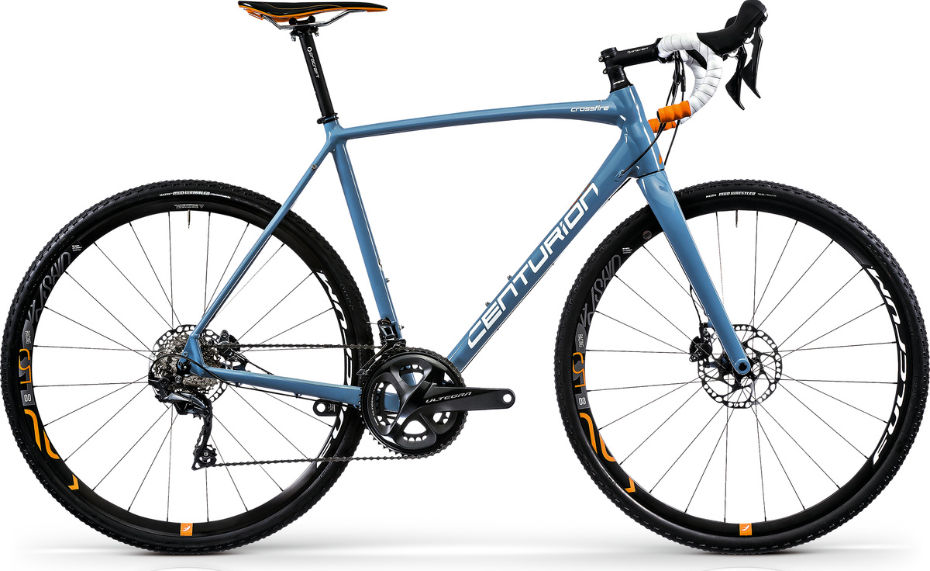

2018 Centurion Crossfire geometry
Full frame geometry for the 2018 Centurion Crossfire, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 524 | 365 | 73 | 69.5 | 110 | 525 | 470 | 744 | 68 | 425 | 1008 |
| 50 | 540 | 371 | 73 | 70 | 125 | 536 | 500 | 767 | 68 | 425 | 1015 |
| 53 | 560 | 379 | 73 | 70.5 | 145 | 550 | 530 | 792 | 68 | 425 | 1026 |
| 56 | 585 | 385 | 73 | 71.5 | 165 | 564 | 560 | 819 | 68 | 425 | 1025 |
| 59 | 606 | 393 | 73 | 72 | 185 | 578 | 590 | 845 | 68 | 425 | 1034 |
| 62 | 629 | 401 | 73 | 72 | 210 | 593 | 620 | 871 | 68 | 425 | 1050 |
All measurements in millimetres unless marked (°) for angles.
