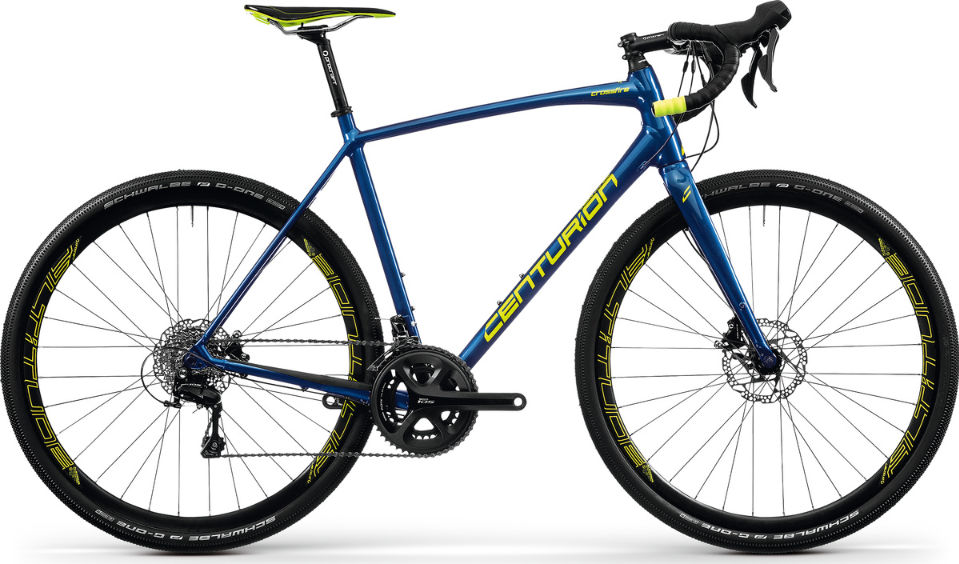

2018 Centurion Crossfire Gravel geometry
Full frame geometry for the 2018 Centurion Crossfire Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 549 | 373 | 74 | 70 | 120 | 531 | 470 | 745 | 75 | 430 | 1023 |
| 50 | 569 | 381 | 74 | 70.2 | 140 | 544 | 500 | 769 | 75 | 430 | 1035 |
| 53 | 589 | 389 | 74 | 70.5 | 160 | 558 | 530 | 793 | 75 | 430 | 1048 |
| 56 | 609 | 397 | 74 | 70.8 | 180 | 572 | 560 | 818 | 75 | 430 | 1060 |
| 59 | 629 | 405 | 74 | 71 | 200 | 585 | 590 | 843 | 75 | 430 | 1072 |
| 62 | 649 | 413 | 74 | 71.2 | 220 | 599 | 620 | 868 | 75 | 430 | 1084 |
All measurements in millimetres unless marked (°) for angles.
