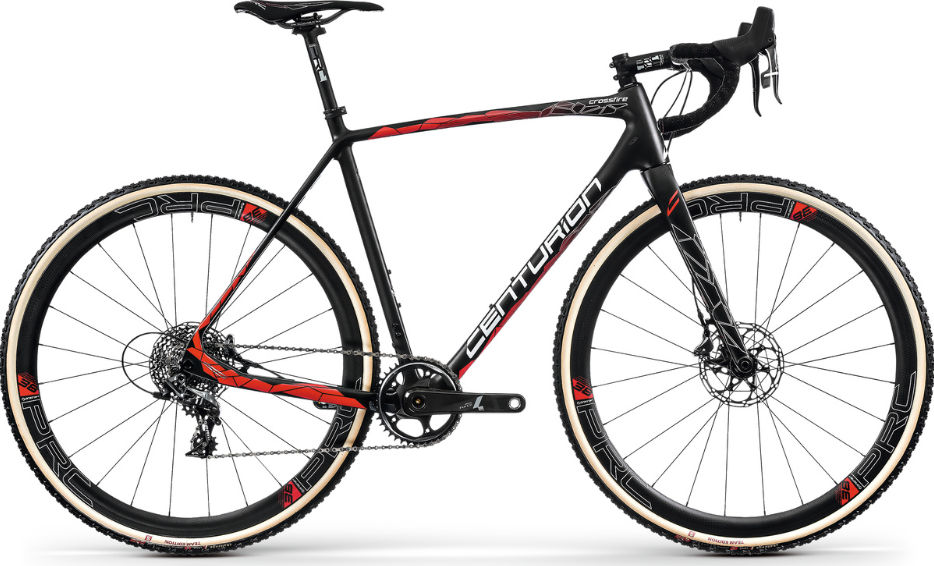

2018 Centurion Crossfire Carbon geometry
Full frame geometry for the 2018 Centurion Crossfire Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 535 | 372 | 73.5 | 71.5 | 111 | 530 | 500 | 756 | 68 | 423 | 998 |
| 53 | 554 | 380 | 73.5 | 72 | 131 | 544 | 530 | 780 | 68 | 423 | 1003 |
| 55 | 574 | 388 | 73.5 | 72.5 | 150 | 558 | 560 | 805 | 68 | 423 | 1012 |
| 59 | 594 | 397 | 73.5 | 72.5 | 171 | 573 | 590 | 828 | 68 | 423 | 1028 |
All measurements in millimetres unless marked (°) for angles.
