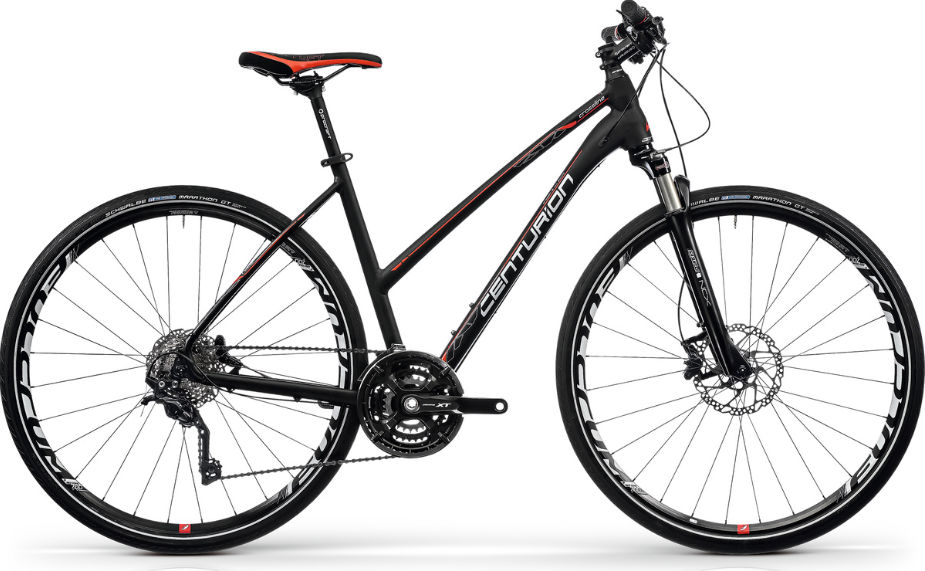

2018 Centurion Cross Line Tour geometry
Full frame geometry for the 2018 Centurion Cross Line Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 588 | 374 | 73 | 71 | 95 | 554 | 440 | 70 | 445 | 1040 |
| 47 | 607 | 384 | 73 | 71 | 115 | 569 | 470 | 70 | 445 | 1055 |
| 50 | 628 | 394 | 73 | 71.5 | 135 | 586 | 500 | 70 | 445 | 1068 |
| 53 | 647 | 404 | 73 | 71.5 | 155 | 602 | 530 | 70 | 445 | 1084 |
| 56 | 668 | 414 | 73 | 72 | 175 | 618 | 560 | 70 | 445 | 1095 |
All measurements in millimetres unless marked (°) for angles.
