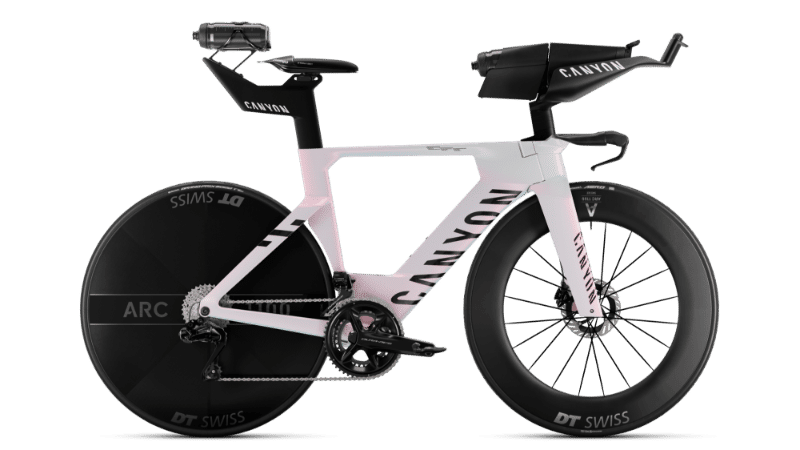

2027 Canyon Speedmax CFR geometry
Full frame geometry for the 2027 Canyon Speedmax CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 470 | 419 | 81 | 73 | 62 | 516 | 480 | 489 | 75 | 420 | 989 |
| M | 481 | 440 | 81 | 73 | 73 | 537 | 513 | 510 | 75 | 420 | 1013 |
| L | 511 | 463 | 81 | 73 | 105 | 565 | 550 | 544 | 75 | 420 | 1046 |
| XL | 542 | 486 | 81 | 73 | 137 | 593 | 585 | 576 | 75 | 420 | 1078 |
All measurements in millimetres unless marked (°) for angles.
