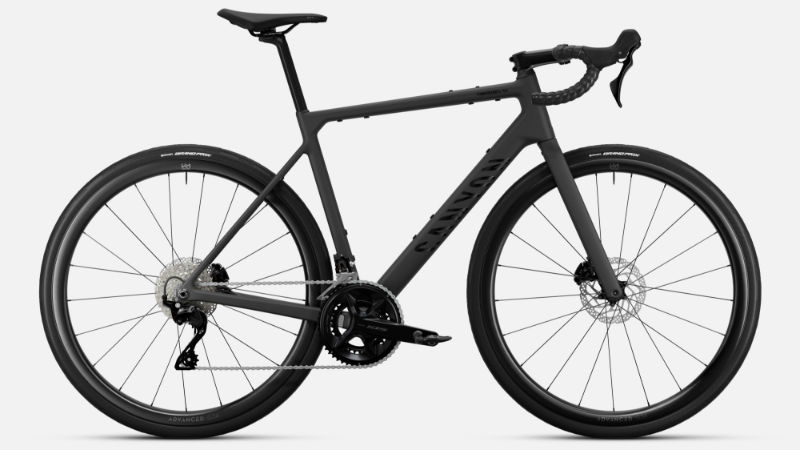

2027 Canyon Endurace CF geometry
Full frame geometry for the 2027 Canyon Endurace CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 525 | 382 | 73.5 | 70.3 | 104 | 537 | 432 | 734 | 74 | 420 | 1006 |
| XS | 545 | 386 | 73.5 | 71 | 123 | 547 | 462 | 763 | 74 | 420 | 1010 |
| S | 563 | 390 | 73.5 | 71.8 | 139 | 557 | 492 | 788 | 74 | 420 | 1013 |
| M | 584 | 392 | 73.5 | 72.5 | 158 | 565 | 522 | 815 | 74 | 420 | 1014 |
| L | 605 | 401 | 73.5 | 72.5 | 180 | 580 | 552 | 840 | 74 | 420 | 1030 |
| XL | 629 | 409 | 73.5 | 72.8 | 204 | 596 | 582 | 867 | 74 | 420 | 1043 |
| 2XL | 649 | 427 | 73.5 | 72.8 | 226 | 619 | 612 | 891 | 74 | 420 | 1067 |
All measurements in millimetres unless marked (°) for angles.
