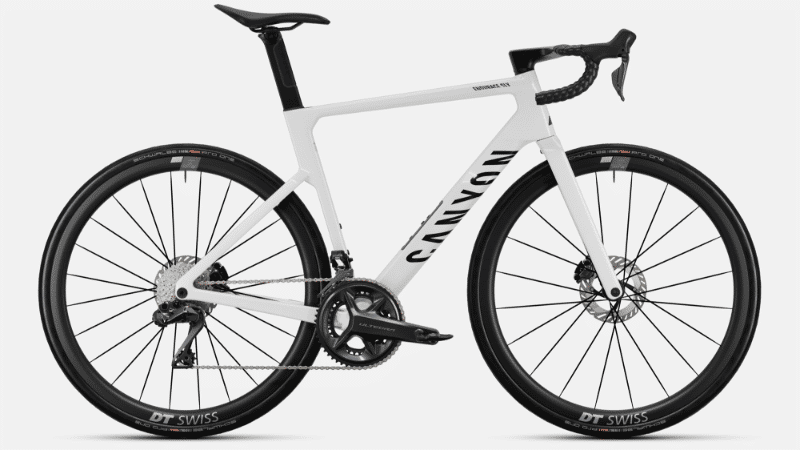

2027 Canyon Endurace CF SLX geometry
Full frame geometry for the 2027 Canyon Endurace CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 524 | 378 | 73.5 | 70.3 | 103 | 533 | 432 | 734 | 74 | 418 | 999 |
| XS | 545 | 383 | 73.5 | 71 | 123 | 544 | 462 | 763 | 74 | 418 | 1005 |
| S | 565 | 386 | 73.5 | 71.8 | 141 | 553 | 492 | 788 | 74 | 418 | 1008 |
| M | 586 | 388 | 73.5 | 72.5 | 161 | 562 | 522 | 815 | 74 | 418 | 1009 |
| L | 608 | 397 | 73.5 | 72.5 | 183 | 577 | 552 | 840 | 74 | 418 | 1025 |
| XL | 633 | 405 | 73.5 | 72.8 | 208 | 593 | 582 | 867 | 74 | 418 | 1039 |
| 2XL | 652 | 415 | 73.5 | 72.8 | 229 | 608 | 612 | 891 | 74 | 418 | 1054 |
All measurements in millimetres unless marked (°) for angles.
