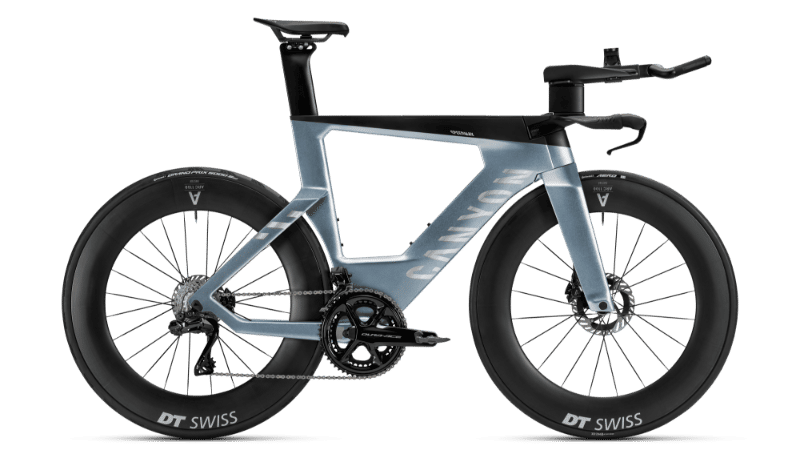

2026 Canyon Speedmax CFR geometry
Full frame geometry for the 2026 Canyon Speedmax CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 435 | 393 | 80.5 | 72 | 64 | 466 | 488 | 759 | 52 | 410 | 960 |
| S | 469 | 415 | 80.5 | 73 | 62 | 494 | 531 | 797 | 72 | 420 | 986 |
| M | 489 | 438 | 80.5 | 73 | 83 | 519 | 552 | 817 | 72 | 420 | 1014 |
| L | 527 | 459 | 80.4 | 73 | 123 | 548 | 592 | 857 | 72 | 420 | 1047 |
| XL | 553 | 483 | 80.5 | 73 | 150 | 576 | 616 | 881 | 72 | 420 | 1079 |
All measurements in millimetres unless marked (°) for angles.
