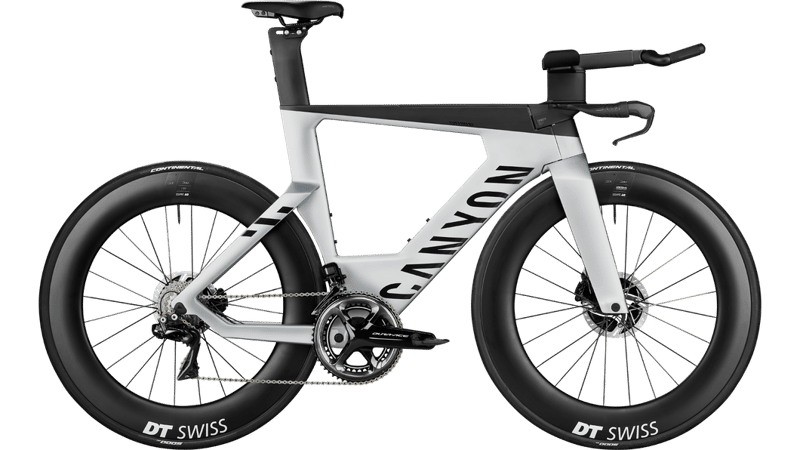

2021 Canyon Speedmax CFR geometry
Full frame geometry for the 2021 Canyon Speedmax CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 435 | 393 | 80.5 | 72 | 64 | 466 | 488 | 273 | 410 | 960 |
| S | 469 | 415 | 80.5 | 73 | 62 | 494 | 531 | 798 | 420 | 986 |
| M | 489 | 438 | 80.6 | 73 | 83 | 519 | 552 | 816 | 420 | 1 |
| L | 627 | 459 | 80.4 | 73 | 123 | 648 | 692 | 272 | 420 | 1 |
| XL | 653 | 483 | 80.6 | 73 | 160 | 676 | 616 | 272 | 420 | 1.1 |
All measurements in millimetres unless marked (°) for angles.
