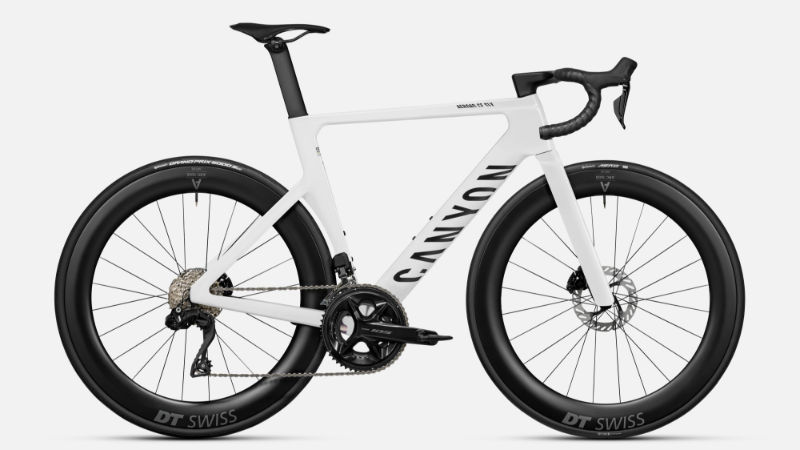

2027 Canyon Aeroad CF SLX geometry
Full frame geometry for the 2027 Canyon Aeroad CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 498 | 372 | 73.5 | 70 | 88 | 520 | 441 | 720 | 70 | 410 | 975 |
| XS | 520 | 378 | 73.5 | 71.2 | 107 | 532 | 471 | 748 | 70 | 410 | 979 |
| S | 539 | 390 | 73.5 | 72.8 | 121 | 549 | 501 | 775 | 70 | 410 | 982 |
| M | 560 | 393 | 73.5 | 73.3 | 142 | 559 | 531 | 801 | 70 | 410 | 988 |
| L | 580 | 401 | 73.5 | 73.3 | 162 | 572 | 561 | 828 | 70 | 413 | 1003 |
| XL | 606 | 419 | 73.5 | 73.5 | 188 | 598 | 591 | 851 | 70 | 415 | 1029 |
| 2XL | 624 | 429 | 73.5 | 73.8 | 206 | 613 | 621 | 874 | 70 | 415 | 1042 |
All measurements in millimetres unless marked (°) for angles.
