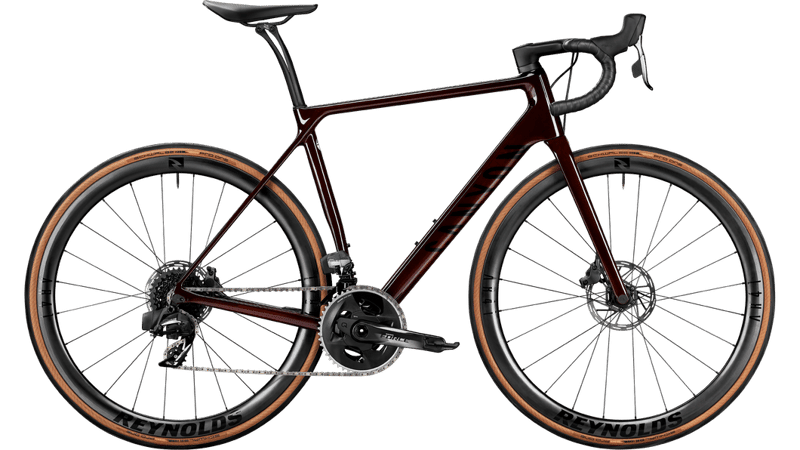

2021 Canyon Endurace CF SLX geometry
Full frame geometry for the 2021 Canyon Endurace CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2XS | 510 | 360 | 72.6 | 69.2 | 511 | 724 | 75 | 415 | 980 |
| XS | 532 | 370 | 72.7 | 71 | 527 | 750 | 75 | 415 | 982 |
| S | 557 | 376 | 73.5 | 72 | 541 | 780 | 73 | 415 | 988 |
| M | 578 | 382 | 73.5 | 73 | 553 | 806 | 73 | 415 | 990 |
| L | 604 | 389 | 73.5 | 73 | 568 | 832 | 73 | 415 | 1006 |
| XL | 625 | 407 | 73.5 | 73.3 | 592 | 857 | 73 | 415 | 1028 |
| 2XL | 644 | 417 | 73.5 | 73.3 | 607 | 881 | 73 | 415 | 1043 |
All measurements in millimetres unless marked (°) for angles.
